ATS625LSG
True Zero-Speed Low-Jitter
High Accuracy Gear Tooth Sensor

ATS625LSG ÐͺÅ
ATS625LSG ÀàÐÍ »ô¶ûЧӦ³ÝÂÖ´«¸ÐÆ÷
ATS625LSG Ó¦ÓÃ
ALLEGRO    Æ·ÅÆϵÁвúÆ·
ATS625LSG ÅúºÅ
ATS625LSG ÊýÁ¿

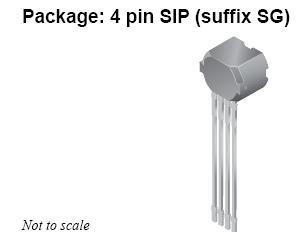

ATS625LSG ·â×° 3-pin SIP
ATS625LSG °ü×°
ATS625LSG ¼Û¸ñ
ATS625LSG ±¸×¢ Ô­×°ÕýÆ·£¬ÎÞǦ
ATS625LSG     ¼¼Êõ×ÊÁÏ(µã»÷ÐͺÅPDFÎĵµÏÂÔØ)
ATS625LSG Ïà¹ØÐͺÅ

Features and Benefits
▪ Highly repeatable over operating temperature range
▪ Tight timing accuracy over operating temperature range
▪ True zero-speed operation
▪ Air-gap¨Cindependent switchpoints
▪ Vibration immunity
▪ Large operating air gaps
▪ Defined power-on state
▪ Wide operating voltage range
▪ Digital output representing target profile
▪ Single-chip sensing IC for high reliability

Description
The ATS625 true zero-speed gear tooth sensor is an optimized
Hall IC and magnet configuration packaged in a molded module
that provides a manufacturer-friendly solution for digital gear
tooth sensing applications. The sensor assembly consists of an
over-molded package that holds together a samarium cobalt
magnet, a pole piece concentrator, and a true zero-speed Hall
IC that has been optimized to the magnetic circuit. This small
package can be easily assembled and used in conjunction with
gears of various shapes and sizes.
The sensor incorporates a dual-element Hall IC that switches
in response to differential magnetic signals created by a ferrous
target. Digital processing of the analog signal provides zerospeed
performance independent of air gap as well as dynamic
adaptation of device performance to the typical operating
conditions found in automotive applications (reduced vibration
sensitivity). High-resolution peak detecting DACs are used to
set the adaptive switching thresholds of the device. Switchpoint
hysteresis reduces the negative effects of any anomalies in
the magnetic signal associated with the targets used in many
automotive applications. This sensor system is optimized
