ULN2803AÌؼÛÈÈÂô

2803 THRU
2824
HIGH-VOLTAGE, HIGH-CURRENT
DARLINGTON ARRAYS

ULN2803A ÐͺÅ
ULN2803A ÀàÐÍ ´ïÁÖ¶Ù¾§Ìå¹ÜÕóÁÐ
ULN2803A Ó¦Óà
ALLEGRO  Æ·ÅÆϵÁвúÆ·
ULN2803A ÅúºÅ
ULN2803A ÊýÁ¿
ULN2803A ·â×°
ULN2803A °ü×°
ULN2803A ¼Û¸ñ
ULN2803A ±¸×¢ Ô­×°ÕýÆ·£¬ÎÞǦ
ULN2803A ¼¼Êõ×ÊÁÏ(µã»÷ÐͺÅPDFÎĵµÏÂÔØ)
ULN2803A Ïà¹ØÐͺÅ

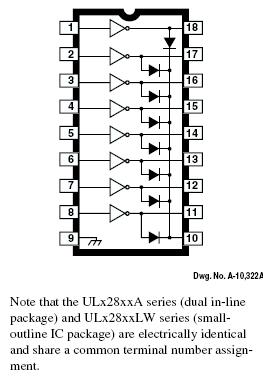

FEATURES

TTL, DTL, PMOS, or CMOS Compatible Inputs

Output Current to 500 mA

Output Voltage to 95 V

Transient-Protected Outputs

Dual In-Line Package or Wide-Body Small-Outline Package

ABSOLUTE MAXIMUM RATINGS
Output Voltage, VCE
(x2803x and x2804x) ..................... 50 V
(x2823x and x2824x) ..................... 95 V
Input Voltage, VIN ..............................30 V
Continuous Output Current, IC .... 500 mA
Continuous Input Current, IIN ....... 25 mA
Power Dissipation, PD
(one Darlington pair) .................. 1.0 W
(total package) ..................... See Graph
Operating Temperature Range, TA
Prefix ¡®ULN¡¯ .............. -20¡ãC to + 85¡ãC
Prefix ¡®ULQ¡¯ ............... -40¡ãC to +85¡ãC
Storage Temperature Range,
TS ................................ -55¡ãC to +150¡ãC
