MICROSTEPPING DMOS DRIVER
WITH TRANSLATOR
WITH TRANSLATOR
A3977SLPT型号
A3977SLPT 类型 直流电刷及双极步进电动机驱动器
A3977SLPT 类型 直流电刷及双极步进电动机驱动器
A3977SLPT 包装
A3977SLPT 价格
A3977SLPT 备注 原装正品 现货热卖 最新到货
A3977SLPT 技术资料(点击型号PDF文档下载)
A3977SLPT 相关型号 A3952SB A8904SLPTR-T A1104LUA-T UGL3132UA A1321ELHLT-T A1101ELHLT-T UGN3132UA A8483EEKTR-T A8904SLBTR-T A3260ELHLT A2982SLW A3967SLW-T A1104LU-T
A3977SLPT 备注 原装正品 现货热卖 最新到货
A3977SLPT 技术资料(点击型号PDF文档下载)
A3977SLPT 相关型号 A3952SB A8904SLPTR-T A1104LUA-T UGL3132UA A1321ELHLT-T A1101ELHLT-T UGN3132UA A8483EEKTR-T A8904SLBTR-T A3260ELHLT A2982SLW A3967SLW-T A1104LU-T
The A3977xED and A3977xLP are complete microstepping motor drivers
with built-in translator. They are designed to operate bipolar stepper motors in
full-, half-, quarter-, and eighth-step modes, with output drive capability of 35
V and ±2.5 A. The A3977 includes a fixed off-time current regulator that has
the ability to operate in slow-, fast-, or mixed-decay modes. This currentdecay
control scheme results in reduced audible motor noise, increased step
accuracy, and reduced power dissipation.
The translator is the key to the easy implementation of the A3977. By
simply inputting one pulse on the STEP input the motor will take one step
(full, half, quarter, or eighth depending on two logic inputs). There are no
phase-sequence tables, high-frequency control lines, or complex interfaces to
program. The A3977 interface is an ideal fit for applications where a complex
μP is unavailable or over-burdened.
Internal synchronous-rectification control circuitry is provided to improve
power dissipation during PWM operation.
Internal circuit protection includes thermal shutdown with hysteresis,
under-voltage lockout (UVLO) and crossover-current protection. Special
power-up sequencing is not required.

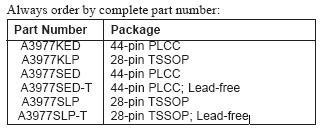

The A3977 is supplied in a choice of two power packages, a 44-pin
plastic PLCC with copper batwing tabs (suffix ED), and a thin (<1.2 mm), 28-
pin TSSOP with an exposed thermal pad (suffix LP). The SLP package is
available in a lead-free version (100% matte tin leadframe).
with built-in translator. They are designed to operate bipolar stepper motors in
full-, half-, quarter-, and eighth-step modes, with output drive capability of 35
V and ±2.5 A. The A3977 includes a fixed off-time current regulator that has
the ability to operate in slow-, fast-, or mixed-decay modes. This currentdecay
control scheme results in reduced audible motor noise, increased step
accuracy, and reduced power dissipation.
The translator is the key to the easy implementation of the A3977. By
simply inputting one pulse on the STEP input the motor will take one step
(full, half, quarter, or eighth depending on two logic inputs). There are no
phase-sequence tables, high-frequency control lines, or complex interfaces to
program. The A3977 interface is an ideal fit for applications where a complex
μP is unavailable or over-burdened.
Internal synchronous-rectification control circuitry is provided to improve
power dissipation during PWM operation.
Internal circuit protection includes thermal shutdown with hysteresis,
under-voltage lockout (UVLO) and crossover-current protection. Special
power-up sequencing is not required.
The A3977 is supplied in a choice of two power packages, a 44-pin
plastic PLCC with copper batwing tabs (suffix ED), and a thin (<1.2 mm), 28-
pin TSSOP with an exposed thermal pad (suffix LP). The SLP package is
available in a lead-free version (100% matte tin leadframe).
FEATURES
■ ±2.5 A, 35 V Output Rating
■ Low rDS(on) Outputs, 0.45 Ω Source, 0.36 Ω Sink Typical
■ Automatic Current Decay Mode Detection/Selection
■ 3.0 V to 5.5 V Logic Supply Voltage Range
■ Mixed, Fast, and Slow Current Decay Modes
■ Home Output
■ Synchronous Rectification for Low Power Dissipation
■ Internal UVLO and Thermal Shutdown Circuitry
■ Crossover-Current Protection
■ ±2.5 A, 35 V Output Rating
■ Low rDS(on) Outputs, 0.45 Ω Source, 0.36 Ω Sink Typical
■ Automatic Current Decay Mode Detection/Selection
■ 3.0 V to 5.5 V Logic Supply Voltage Range
■ Mixed, Fast, and Slow Current Decay Modes
■ Home Output
■ Synchronous Rectification for Low Power Dissipation
■ Internal UVLO and Thermal Shutdown Circuitry
■ Crossover-Current Protection
