Navigate：A3245ELHLT-T 稳定斩波型全极霍尔效应开关
Update：2009-04-10 Views：5324
A3245
Chopper-Stabilized
Omnipolar Hall-Effect Switches
A3245ELHLT-T 型号
A3245ELHLT-T 类型 稳定斩波型全极霍尔效应开关
Omnipolar Hall-Effect Switches
A3245ELHLT-T 型号
A3245ELHLT-T 类型 稳定斩波型全极霍尔效应开关
A3245ELHLT-T 包装
A3245ELHLT-T 价格
A3245ELHLT-T 备注 原装正品 现货热卖 最新到货
A3245ELHLT-T 技术资料(点击型号PDF文档下载)
A3245ELHLT-T 相关型号 A1106EUA-T A1106ELHLT-T A1104EU-T A1104EUA-T A1102LUA-T
A3245ELHLT-T 备注 原装正品 现货热卖 最新到货
A3245ELHLT-T 技术资料(点击型号PDF文档下载)
A3245ELHLT-T 相关型号 A1106EUA-T A1106ELHLT-T A1104EU-T A1104EUA-T A1102LUA-T
询价热线：
0755－83283733, 83031813，33062500
QQ：623069669
MSN：sumzi003@sumzi.com sumzi006@sumzi.com
Email:sumzi@sumzi.com
http://www.sumzi.com
Features and Benefi ts
1.Omnipolar operation
2.Chopper stabilization
1）Superior temperature stability
2）Extremely low switchpoint drift
3）Extremely low switchpoint drift
3.Reverse battery protection
4.Output short circuit protection
5.Solid state reliability
6.Small size
7.Robust EMC capability
8.High ESD ratings (HBM)

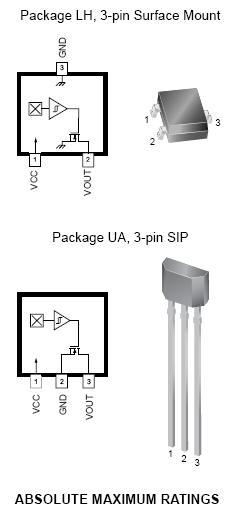

AB SO LUTE MAX I MUM RAT INGS
Supply Voltage, VCC ..........................................28 V
Reverse-Supply Voltage, VRCC ........................–18 V
Reverse-Supply Current, IRCC ........................–2 mA
Output Off Voltage, VOUT..................................28 V
Output Current, IOUTSINK........... Internally Limited
Magnetic Flux Density, B .........................Unlimited
Operating Temperature
Ambient, TA, Range E.................. –40ºC to 85ºC
Ambient, TA, Range L................ –40ºC to 150ºC
Maximum Junction, TJ(MAX)......................165ºC
Storage Temperature, TS .................. –65ºC to 170ºC
Supply Voltage, VCC ..........................................28 V
Reverse-Supply Voltage, VRCC ........................–18 V
Reverse-Supply Current, IRCC ........................–2 mA
Output Off Voltage, VOUT..................................28 V
Output Current, IOUTSINK........... Internally Limited
Magnetic Flux Density, B .........................Unlimited
Operating Temperature
Ambient, TA, Range E.................. –40ºC to 85ºC
Ambient, TA, Range L................ –40ºC to 150ºC
Maximum Junction, TJ(MAX)......................165ºC
Storage Temperature, TS .................. –65ºC to 170ºC
