描叙：MIP551／MIP552は、LED照明などに最適な駆動デバイスです。 商用電源などの高電圧に接続してLED電流を定電流駆動でき、 ... MIP552 ：
描叙：MIP551／MIP552是照明用LED的最佳驱动器件。连接到商用电. 力网，用定电流驱动LED，实现LED照明电路的小型化和高效率。 ... MIP551：0.5 A、MIP552：1.0 A. ※具有对应于输入电压的2级校正功能. LED发光辉度调节功能：用EX端子电压0～3 V对应 ...
MIP551/MIP552 产品品牌 松下
MIP551/MIP552 产品说明 原装 正品 最新到货 大量库存
询价热线：
0755－83283733, 83031813，33062500
QQ：623069669
MSN：sumzi003@sumzi.com sumzi006@sumzi.com
Email:sumzi@sumzi.com
MIP551/MIP552 is the best device for LED-lighting.
LED-lighting using MIP551/MIP552 has small size & high efficiency by simple design in worldwide input voltage(80 VAC to 280 VAC), and has dimmer control function by external signal.
Features
- Worldwide input voltage, 80 VAC to 280 VAC
- Typical LED peak current
MIP551 : 0.5 A
MIP552 : 1.0 A
* Peak current can be adjusted in two-stage corresponding to the input voltage. - Dimmer control function : EX-pin voltage range, 0 V to 3 V
- Function to set input voltage that can be driven
:L-pin voltage range - Over temperature protection for IPD (Auto-restart)
Applications
LED-lighting
HB-LED drive circuit
Specifications
| Items | package | VDSS | FOSC | IDpeak | RON | Maximum output power (Ta=25°C) |
| MIP5510MSSCF | DIP7-A1 | >700 | 44 kHz (typ.) | 0.5A(typ.) | 12Ω(typ.) | 10W (Io=0.35A, C3=47µF) |
| MIP5520MDSLJ | TO-220IPD7-A2 | >700 | 44 kHz (typ.) | 1.0A(typ.) | 6Ω(typ.) | 30W with heat sink (Io=0.70A, C3=220µF) |

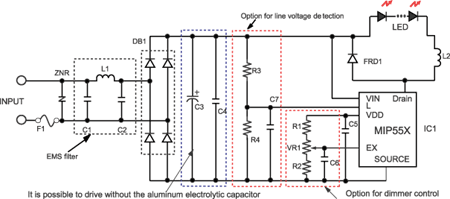

Example of typical application circuit for LED-lighting
