A3280LUA Îȶ¨Õ¶²¨Ð;«ÃÜ»ô¶ûЧӦËø´æ

3185 THRU 3189
HALL-EFFECT LATCHES
FOR HIGH-TEMPERATURE OPERATION

A3280LUA ÐͺÅ
A3280LUA ÀàÐÍ Îȶ¨Õ¶²¨Ð;«ÃÜ»ô¶ûЧӦËø´æ
A3280LUA Ó¦ÓÃ
ALLEGRO  Æ·ÅÆϵÁвúÆ·
A3280LUA ÅúºÅ
A3280LUA ÊýÁ¿
A3280LUA ·â×°
A3280LUA °ü×°
A3280LUA ¼Û¸ñ
A3280LUA ±¸×¢ Ô­×°ÕýÆ·£¬ÎÞǦ
A3280LUA ¼¼Êõ×ÊÁÏ(µã»÷ÐͺÅPDFÎĵµÏÂÔØ)
A3280LUA Ïà¹ØÐͺÅ

ѯ¼ÛÈÈÏߣº

0755£­83283733, 83031813£¬33062500

QQ£º623069669

MSN£ºsumzi003@sumzi.com  sumzi006@sumzi.com

Email:sumzi@sumzi.com

http://www.sumzi.com

These Hall-effect latches are extremely temperature-stable and stressresistant
sensors especially suited for operation over extended temperature
ranges to +150¡ãC. Superior high-temperature performance is made possible
through a novel Schmitt trigger circuit that maintains operate and release
point symmetry by compensating for temperature changes in the Hall element.
Additionally, internal compensation provides magnetic switch points
that become more sensitive with temperature, hence offsetting the usual
degradation of the magnetic field with temperature. The symmetry capability
makes these devices ideal for use in pulse-counting applications where duty
cycle is an important parameter. The four basic devices (3185, 3187, 3188,
and 3189) are identical except for magnetic switch points.

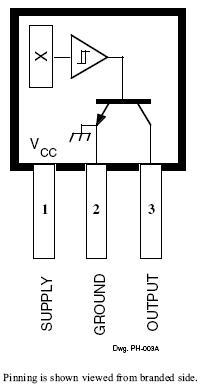

Each device includes on a single silicon chip a voltage regulator, quadratic
Hall-voltage generator, temperature compensation circuit, signal
amplifier, Schmitt trigger, and a buffered open-collector output to sink up to
25 mA. The on-board regulator permits operation with supply voltages of 3.8
to 24 volts.
The first character of the part number suffix determines the device
operating temperature range. Suffix ¡®E¨C¡¯ is for -40¡ãC to +85¡ãC, and suffix
¡®L¨C¡¯ is for -40¡ãC to +150¡ãC. Three package styles provide a magnetically
optimized package for most applications. Suffix ¡®¨CLT¡¯ is a miniature SOT-
89/TO-243AA transistor package for surface-mount applications; suffix ¡®¨CU¡¯
is a three-lead plastic mini-SIP, while suffix ¡®¨CUA¡¯ is a three-lead ultra-mini-
SIP.

FEATURES

Symmetrical Switch Points

Superior Temperature Stability

Operation From Unregulated Supply

Open-Collector 25 mA Output

Reverse Battery Protection

Activate With Small, Commercially Available Permanent Magnets

Solid-State Reliability

Small Size

Resistant to Physical Stress

ABSOLUTE MAXIMUM RATINGS
at TA = +25¡ãC
Supply Voltage, VCC ............................ 30 V
Reverse Battery Voltage, VRCC ........... -30 V
Magnetic Flux Density, B ........... Unlimited
Output OFF Voltage, VOUT .................. 30 V
Reverse Output Voltage, VOUT .......... -0.5 V
Continuous Output Current, IOUT ..... 25 mA
Operating Temperature Range, TA
Suffix ¡®E¨C¡¯ ................... -40¡ãC to +85¡ãC
Suffix ¡®L¨C¡¯ ................. -40¡ãC to +150¡ãC
Storage Temperature Range,
TS ............................... -65¡ãC to +170¡ãC
