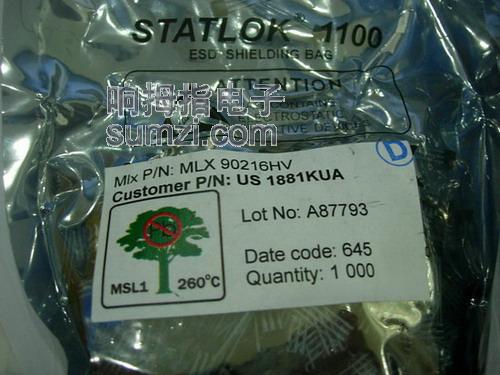

US1881KUA 详细介绍US1881KUA 型号MELEXIS 品牌系列产品 US1881KUA US1881KUA 批号 07+ US1881KUA 数量 150000 US1881KUA 封装 3-pin SIP US1881KUA 包装 1000/pag US1881KUA 备注 original/IN STOCK US1881KUA PDF技术资料 US1881KUA 询价 | |
|
The Melexis US1881 is a Hall-effect latch designed in mixed signal CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all
in a single package. Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in automotive, industrial and consumer applications. The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount. Both 3-lead packages are RoHS compliant. Features and Benefits
Chopper stabilized amplifier stage
Optimized for brushless DC motor applications
Miniature high reliability package
Operation down to 3.5V
CMOS for optimum stability, quality and cost
Low power consumption
Ordering Information
温度后缀说明（Temperature Suffix）
E (-40°C to 85°C)
K (-40°C to 125°C)
L (-40°C to 150°C)
封装后缀说明（Package Code）
SO (SOT-23) or UA(TO-92)
SO (SOT-23) or UA(TO-92)
SO (SOT-23) or UA(TO-92)
 |
