A3280, A3281, and A3283
Chopper-Stabilized, Precision Hall-Effect Latches
3280.pdf
Features
- Symmetrical Switch Points
- Resistant to Physical Stress
- Superior Temperature Stability
- Output Short-Circuit Protection
- Operation From Unregulated Supply
- Reverse Battery Protection
- Solid-State Reliability
- Small Size
Description
The A3280--, A3281--, and A3283-- Hall-effect latches are extremely temperature-stable and stress-resistant sensors especially suited for operation over extended temperature ranges to +150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. The three devices are identical except for magnetic switch points.
Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-collector output to sink up to 25 mA. A south pole of sufficient strength will turn the output on. A north pole is necessary to turn the output off. An on-board regulator permits operation with supply voltages of 4.2 to 24 volts.
Three package styles provide a magnetically optimized package for most applications. Package type LH is a modified SOT23W surface-mount package, LT is a miniature SOT89/TO-243AA transistor package for surface-mount applications; while UA is a three-lead ultra-mini-SIP for through-hole mounting. Each package type is also available in a lead (Pb) free version (suffix, –T) , with a 100% matte tin plated leadframe.

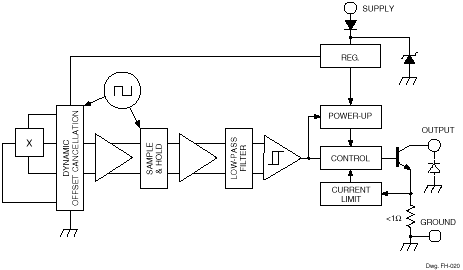

Functional Block Diagram
Part Number
Package Type
RoHS
Temperature
Compliant
A3280ELHLT
3-lead SOT
No
-40 °C to 85 °C
A3280ELHLT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3280ELT
3-lead SOT
No
-40 °C to 85 °C
A3280ELT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3280ELTTR
3-lead SOT
No
-40 °C to 85 °C
A3280ELTTR-T
3-lead SOT
Yes
-40 °C to 85 °C
A3280EUA
3-pin SIP
No
-40 °C to 85 °C
A3280EUA-T
3-pin SIP
Yes
-40 °C to 85 °C
A3280LLHLT
3-lead SOT
No
-40 °C to 150 °C
A3280LLHLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3280LLT
3-lead SOT
No
-40 °C to 150 °C
A3280LLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3280LLTTR
3-lead SOT
No
-40 °C to 150 °C
A3280LLTTR-T
3-lead SOT
Yes
-40 °C to 150 °C
A3280LUA
3-pin SIP
No
-40 °C to 150 °C
A3280LUA-T
3-pin SIP
Yes
-40 °C to 150 °C
A3281ELHLT
3-lead SOT
No
-40 °C to 85 °C
A3281ELHLT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3281ELT
3-lead SOT
No
-40 °C to 85 °C
A3281ELT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3281ELTTR
3-lead SOT
No
-40 °C to 85 °C
A3281ELTTR-T
3-lead SOT
Yes
-40 °C to 85 °C
A3281EUA
3-pin SIP
No
-40 °C to 85 °C
A3281EUA-T
3-pin SIP
Yes
-40 °C to 85 °C
A3281LLHLT
3-lead SOT
No
-40 °C to 150 °C
A3281LLHLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3281LLT
3-lead SOT
No
-40 °C to 150 °C
A3281LLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3281LLTTR
3-lead SOT
No
-40 °C to 150 °C
A3281LLTTR-T
3-lead SOT
Yes
-40 °C to 150 °C
A3281LUA
3-pin SIP
No
-40 °C to 150 °C
A3281LUA-T
3-pin SIP
Yes
-40 °C to 150 °C
A3283ELHLT
3-lead SOT
No
-40 °C to 85 °C
A3283ELHLT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3283ELT
3-lead SOT
No
-40 °C to 85 °C
A3283ELT-T
3-lead SOT
Yes
-40 °C to 85 °C
A3283ELTTR
3-lead SOT
No
-40 °C to 85 °C
A3283ELTTR-T
3-lead SOT
Yes
-40 °C to 85 °C
A3283EUA
3-pin SIP
No
-40 °C to 85 °C
A3283EUA-T
3-pin SIP
Yes
-40 °C to 85 °C
A3283LLHLT
3-lead SOT
No
-40 °C to 150 °C
A3283LLHLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3283LLT
3-lead SOT
No
-40 °C to 150 °C
A3283LLT-T
3-lead SOT
Yes
-40 °C to 150 °C
A3283LLTTR
3-lead SOT
No
-40 °C to 150 °C
A3283LLTTR-T
3-lead SOT
Yes
-40 °C to 150 °C
A3283LUA
3-pin SIP
No
-40 °C to 150 °C
A3283LUA-T
3-pin SIP
Yes
-40 °C to 150 °C
Chopper-Stabilized, Precision Hall-Effect Latches
Features
- Symmetrical Switch Points
- Resistant to Physical Stress
- Superior Temperature Stability
- Output Short-Circuit Protection
- Operation From Unregulated Supply
- Reverse Battery Protection
- Solid-State Reliability
- Small Size
Description
The A3280--, A3281--, and A3283-- Hall-effect latches are extremely temperature-stable and stress-resistant sensors especially suited for operation over extended temperature ranges to +150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. The three devices are identical except for magnetic switch points.
Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-collector output to sink up to 25 mA. A south pole of sufficient strength will turn the output on. A north pole is necessary to turn the output off. An on-board regulator permits operation with supply voltages of 4.2 to 24 volts.
Three package styles provide a magnetically optimized package for most applications. Package type LH is a modified SOT23W surface-mount package, LT is a miniature SOT89/TO-243AA transistor package for surface-mount applications; while UA is a three-lead ultra-mini-SIP for through-hole mounting. Each package type is also available in a lead (Pb) free version (suffix, –T) , with a 100% matte tin plated leadframe.
Functional Block Diagram
| Part Number | Package Type | RoHS | Temperature |
| Compliant | |||
| A3280ELHLT | 3-lead SOT | No | -40 °C to 85 °C |
| A3280ELHLT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3280ELT | 3-lead SOT | No | -40 °C to 85 °C |
| A3280ELT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3280ELTTR | 3-lead SOT | No | -40 °C to 85 °C |
| A3280ELTTR-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3280EUA | 3-pin SIP | No | -40 °C to 85 °C |
| A3280EUA-T | 3-pin SIP | Yes | -40 °C to 85 °C |
| A3280LLHLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3280LLHLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3280LLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3280LLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3280LLTTR | 3-lead SOT | No | -40 °C to 150 °C |
| A3280LLTTR-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3280LUA | 3-pin SIP | No | -40 °C to 150 °C |
| A3280LUA-T | 3-pin SIP | Yes | -40 °C to 150 °C |
| A3281ELHLT | 3-lead SOT | No | -40 °C to 85 °C |
| A3281ELHLT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3281ELT | 3-lead SOT | No | -40 °C to 85 °C |
| A3281ELT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3281ELTTR | 3-lead SOT | No | -40 °C to 85 °C |
| A3281ELTTR-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3281EUA | 3-pin SIP | No | -40 °C to 85 °C |
| A3281EUA-T | 3-pin SIP | Yes | -40 °C to 85 °C |
| A3281LLHLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3281LLHLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3281LLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3281LLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3281LLTTR | 3-lead SOT | No | -40 °C to 150 °C |
| A3281LLTTR-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3281LUA | 3-pin SIP | No | -40 °C to 150 °C |
| A3281LUA-T | 3-pin SIP | Yes | -40 °C to 150 °C |
| A3283ELHLT | 3-lead SOT | No | -40 °C to 85 °C |
| A3283ELHLT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3283ELT | 3-lead SOT | No | -40 °C to 85 °C |
| A3283ELT-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3283ELTTR | 3-lead SOT | No | -40 °C to 85 °C |
| A3283ELTTR-T | 3-lead SOT | Yes | -40 °C to 85 °C |
| A3283EUA | 3-pin SIP | No | -40 °C to 85 °C |
| A3283EUA-T | 3-pin SIP | Yes | -40 °C to 85 °C |
| A3283LLHLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3283LLHLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3283LLT | 3-lead SOT | No | -40 °C to 150 °C |
| A3283LLT-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3283LLTTR | 3-lead SOT | No | -40 °C to 150 °C |
| A3283LLTTR-T | 3-lead SOT | Yes | -40 °C to 150 °C |
| A3283LUA | 3-pin SIP | No | -40 °C to 150 °C |
| A3283LUA-T | 3-pin SIP | Yes | -40 °C to 150 °C |
