Navigate：HT7130 稳压三极管HOLTEK提供技术资料及报价
Update：2009-04-09 Views：7502
HT7130 包装 1000PCS/REEL
HT7130 备注 原装正品
HT7130 技术资料
HT7130.pdf
HT7130 技术资料
HT7130.pdfHT7130相关型号
Features
Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 24V)
TO-92 and SOT-89 packages
Applications
Battery-powered equipment
Communication equipment
Audio/Video equipment

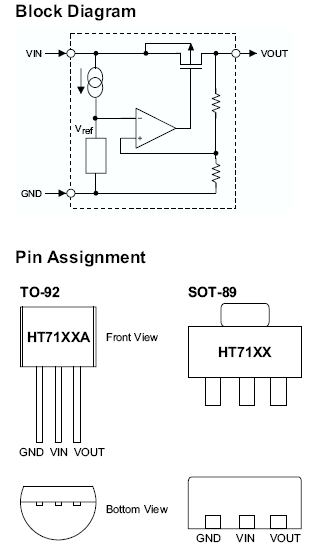

General Description
The HT71XX series is a set of three-terminal
low power high voltage regulators implemented
in CMOS technology. They allow input voltages
as high as 24V. They are available with several
fixed output voltages ranging from 3.0V to
5.0V. CMOS technology ensures low voltage
drop and low quiescent current.
Although designed primarily as fixed voltage
regulators, these devices can be used with external
components to obtain variable voltages
and currents.
Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 24V)
TO-92 and SOT-89 packages
Applications
Battery-powered equipment
Communication equipment
Audio/Video equipment
General Description
The HT71XX series is a set of three-terminal
low power high voltage regulators implemented
in CMOS technology. They allow input voltages
as high as 24V. They are available with several
fixed output voltages ranging from 3.0V to
5.0V. CMOS technology ensures low voltage
drop and low quiescent current.
Although designed primarily as fixed voltage
regulators, these devices can be used with external
components to obtain variable voltages
and currents.
