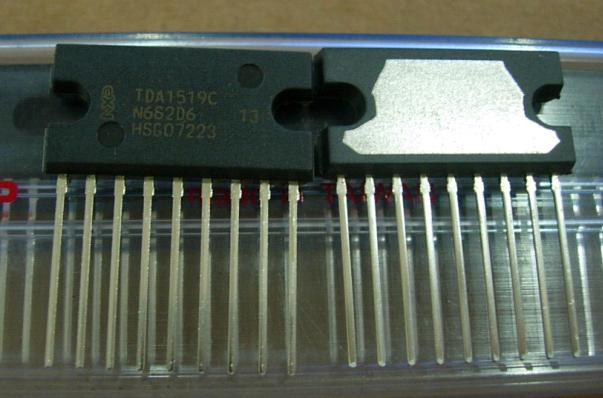

TDA1519C 详细介绍

TDA1519C 型号
PHILIPS品牌系列产品 TDA1519C
TDA1519C 批号 06+/07+
TDA1519C 数量大量现货
TDA1519C 封装 SIP9
TDA1519C 包装 23PCS/管
TDA1519C 备注全新原装正品，06/07年无铅
TDA1519C PDF技术资料 TDA1519C.pdf

TDA1519C 应用家电方面、驱动车载喇叭等等

FEATURES
· Requires very few external components for Bridge-Tied
Load (BTL)
· Stereo or BTL application
· High output power
· Low offset voltage at output (important for BTL)
· Fixed gain
· Good ripple rejection
· Mute/standby switch
· Load dump protection
· AC and DC short-circuit-safe to ground and VP
· Thermally protected
· Reverse polarity safe
· Capability to handle high energy on outputs (VP = 0 V)
· No switch-on/switch-off plop
· Protected against electrostatic discharge
· Low thermal resistance
· Identical inputs (inverting and non-inverting)
· Pin compatible with TDA1519B (TDA1519C and
TDA1519CSP).

GENERAL DESCRIPTION
The TDA1519C is an integrated class-B dual output
amplifier in a 9-lead plastic single in-line (SIL) power or
20-lead heatsink small outline package.
For the TDA1519CTH (SOT418-2) the heatsink is
positioned on top of the package, thereby allowing an
external heatsink to be mounted on top. The heatsink of
the TDA1519CTD (SOT397-1) is facing the PCB thereby
allowing the heatsink to be soldered on the copper area of
the PCB.
