FEATURES
· Very small plastic SMD package
· High switching speed: max. 4 ns
· Continuous reverse voltage:
max. 75 V
· Repetitive peak reverse voltage:
max. 85 V
· Repetitive peak forward current:
max. 500 mA.
· Very small plastic SMD package
· High switching speed: max. 4 ns
· Continuous reverse voltage:
max. 75 V
· Repetitive peak reverse voltage:
max. 85 V
· Repetitive peak forward current:
max. 500 mA.

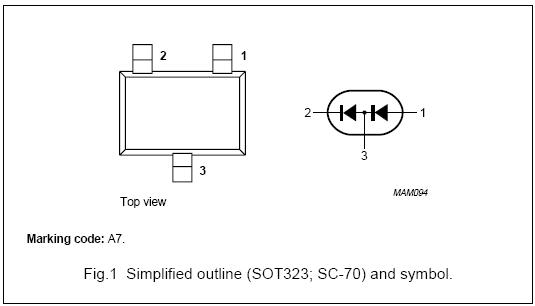

DESCRIPTION
The BAV99W consists of two
high-speed switching diodes
connected in series, fabricated in
planar technology, and encapsulated
in the very small SOT323 plastic SMD
package.
The BAV99W consists of two
high-speed switching diodes
connected in series, fabricated in
planar technology, and encapsulated
in the very small SOT323 plastic SMD
package.
