US4881 Bipolar Hall Switch - Low Voltage & Very High Sensitivity
The Melexis US4881 is a bipolar Hall-effect switch designed in mixed signal CMOS technology.

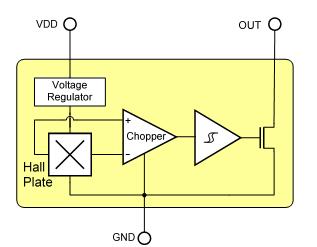

The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
The low operating voltage and extended choice of temperature range make it suitable for use in automotive, industrial and consumer low voltage applications.
The devices are delivered in a Small Outline Transistor (SOT23) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.
Both 3-lead packages are RoHS compliant.
Features and Benefits
- Operating voltage range from 2.2V to 18V
- Very high magnetic sensitivity
- CMOS technology
- Chopper-stabilized amplifier stage
- Low current consumption
- Open drain output
- SOT23 3L and flat TO-92 3L both RoHS Compliant packages
- SO package North Pole Active
- UA package South Pole Active
