Production£º

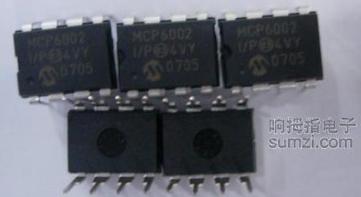

¡¾Part No.¡¿    MCP6002-I/P
¡¾Category¡¿  Operation Amplifier
¡¾Packing¡¿    8-lead PDIP/SOIC/MSOP
¡¾MFQ¡¿          Microchip
¡¾Datasheet¡¿MCP6002 Datasheet

Description

The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general-purpose applications. This family has a 1 MHz gain bandwidth product and 90¡ã phase  margin (typ.). It also maintains 45¡ã phase margin (typ.) with 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 ¦ÌA (typ.) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of operational amplifiers is designed with Microchip¡¯s advanced CMOS process.
The MCP6001/2/4 family is available in the industrial and extended temperature ranges. It also has a power supply range of 1.8V to 5.5V.

Feature

• Available in SC-70-5 and SOT-23-5 packages
• 1 MHz Gain Bandwidth Product (typ.)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 5.5V
• Supply Current: IQ = 100 ¦ÌA (typ.)
• 90¡ã Phase Margin (typ.)
• Temperature Range:
- Industrial: -40¡ãC to +85¡ãC
- Extended: -40¡ãC to +125¡ãC
• Available in Single, Dual and Quad Packages

Applications

• Automotive
• Portable Equipment
• Photodiode Pre-amps
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems
