¡¾Part No.¡¿   L78L05
¡¾Category¡¿ 3-Terminal Positive voltage regulators

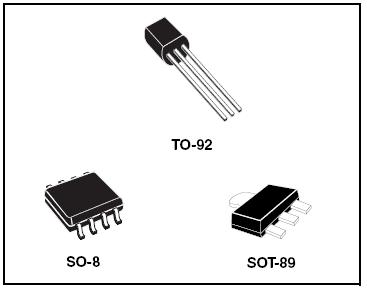

¡¾Packing¡¿   TO-92/SO-8/SOT-89
¡¾MFQ¡¿        ST
¡¾Datasheet¡¿L78L05 Datasheet

Features
¡ö Output current up to 100 mA
¡ö Output voltages of 3.3; 5; 6; 8; 9; 12; 15; 18;
24V
¡ö Thermal overload protection
¡ö Short circuit protection
¡ö No external components are required
¡ö Available in either ¡À5% (AC) or ¡À10% (C)
selection

Description
The L78L00 series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current.
They are intended as fixed voltage regulators in a wide range of applications including local or oncard
regulation for elimination of noise and distribution problems associated with single-point regulation.
In addition, they can be used with power pass elements to make high-current voltage regulators.
The L78L00 series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.

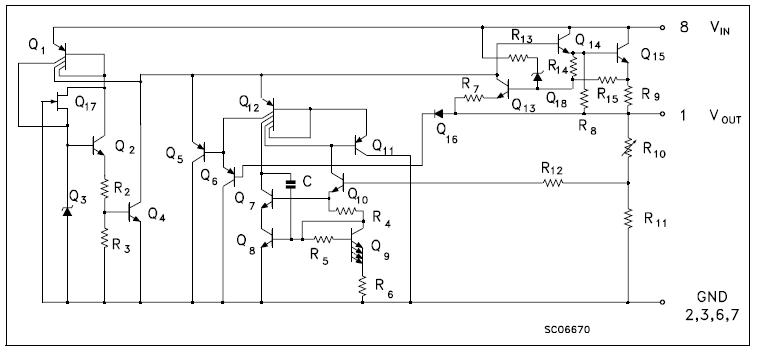

Schematic diagram
