Production£º

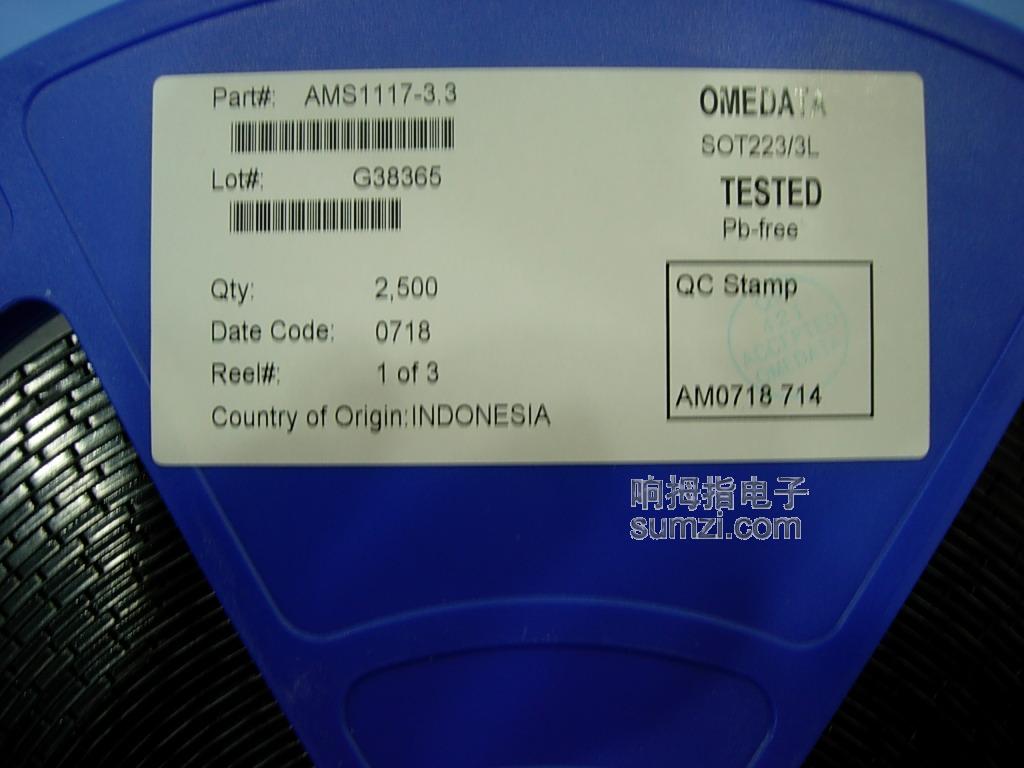

¡¾Part No.¡¿   AMS1117
¡¾Category¡¿ LOW DROPOUT VOLTAGE REGULATOR
¡¾Packing¡¿   TO-252/SOT-223
¡¾MFQ¡¿        AMS
¡¾Datasheet¡¿AMS1117 Datasheet

GENERAL DESCRIPTION
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide 800mA output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents.
On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry.
The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package and in the TO-252 (DPAK) plastic package.

FEATURES

¡¤ Three Terminal Adjustable or Fixed Voltages* 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
¡¤ Output Current of 800mA
¡¤ Operates Down to 1V Dropout
¡¤ Line Regulation: 0.2% Max.
¡¤ Load Regulation: 0.4% Max.
¡¤ SOT-223 and TO-252 package available

APPLICATIONS
¡¤ High Efficiency Linear Regulators
¡¤ Post Regulators for Switching Supplies
¡¤ 5V to 3.3V Linear Regulator
¡¤ Battery Chargers
¡¤ Active SCSI Terminators
¡¤ Power Management for Notebook
¡¤ Battery Powered Instrumentation
