Production£º

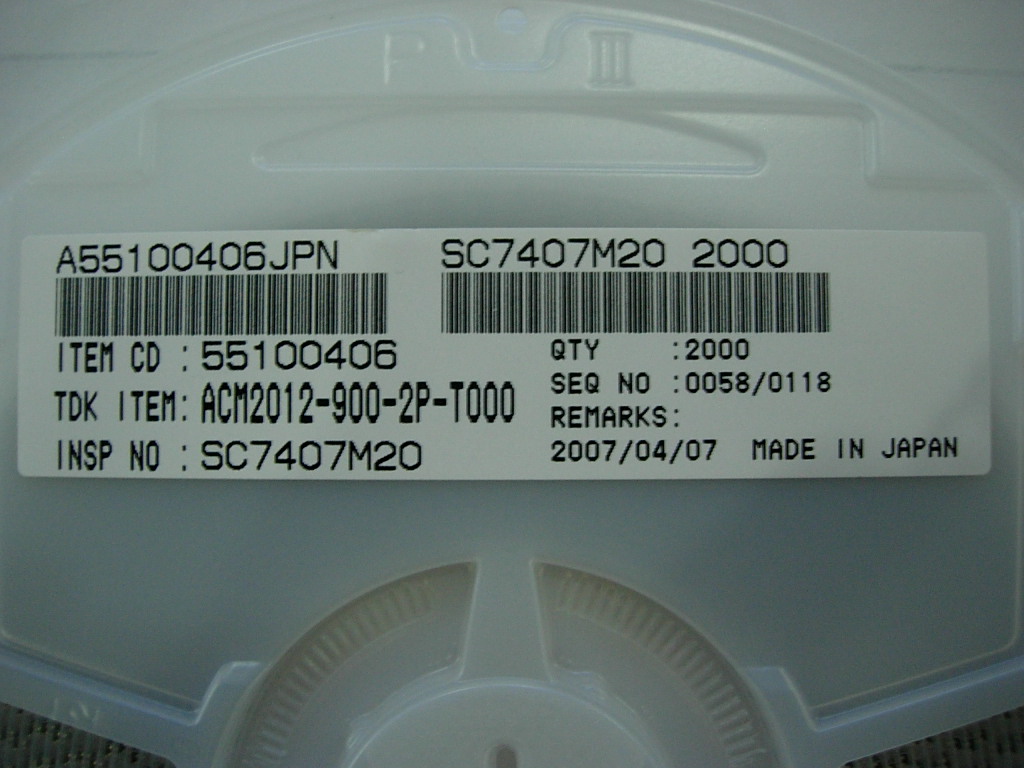

¡¾Part No.¡¿   ACM2012-900-2P-T000
¡¾Category¡¿ Common Mode Filters
¡¾Packing¡¿   3000/Reel
¡¾MFQ¡¿        TDK
¡¾Datasheet¡¿ACM2012 Datasheet

FEATURES

• Although greatly miniaturized, this wire-wound chip-type filter
maintains the characteristics needed for a common-mode filter.
Common-mode impedance is 1000¦¸ [at 100MHz], so this filter is
greatly effective in supporting noise.
• Almost no affect upon even high speed signals since differential
mode impedance is kept low.
• This series includes both 2-line and 3-line types. They are used
for various types of circuits and noise.

APPLICATIONS

• Used for radiation noise suppression for any electronic devices.
• Used to counter common-mode noise affecting signals within
high speed lines.
• USB line for personal computers and peripheral equipment.
• IEEE1394 line for personal computers, DVC, STB, etc.
• LVDS, panel link line for liquid crystal display panels.
