【Part No.】 UDN2516B-T【Category】 Motor Driver
【Packing】 24-pin DIP
【MFQ】 ALLEGRO
【Datasheet】UDN2516 Datasheet
UDx2916
Dual Full-Bridge PWM Motor Driver
Features
- 750 mA Continuous Output Current
- 45 V Output Sustaining Voltage
- Internal Clamp Diodes
- Internal PWM Current Control
- Low Output Saturation Voltage
- Internal Thermal Shutdown Circuitry
- Similar to Dual PBL3717, UC3770
Description
The UDx2916 motor drivers drive both windings of a bipolar stepper motor or bidirectionally control two DC motors. Both bridges are capable of sustaining 45 V and include internal pulse-width modulation (PWM) control of the output current to 750 mA. The outputs have been optimized for a low output saturation voltage drop (less than 1.8 V total source plus sink at 500 mA).
For PWM current control, the maximum output current is determined by user selection of a reference voltage and sensing resistor. Two logic-level inputs select output current limits of 0%, 33%, 67%, or 100% of the maximum level. A PHASE input to each bridge determines load current direction.
The bridges include both ground-clamp and flyback diodes for protection against inductive transients. Internally generated delays prevent crossover currents when switching current direction. Special power-up sequencing is not required. Thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits.

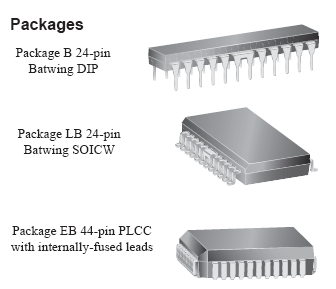

The device is supplied in a 24-pin dual in-line plastic (DIP, package B) with two pairs of batwing leads as heat-sinkable tabs for enhanced power dissipation capabilities. The LB package is a 24-lead surface-mount wide SOIC with two pairs of batwing leads. The EB package is a 44-lead power PLCC with 11 internally-fused leads on two sides. Their webbed-lead construction provides for maximum package power dissipation in the smallest possible construction.
The devices are available for operation from –20°C to 85°C (range N), and from –40°C to 105°C (range Q). All packages are lead (Pb) free, with 100% matte tin leadframe plating.
PWM Current Control Circuitry
|
Part Number |
Package Type | RoHS Compliant | Temperature | Comments |
| UDN2916B | 24-pin DIP | No | -20 °C to 85 °C | discontinued |
| UDN2916B-T | 24-pin DIP | Yes | -20 °C to 85 °C | new |
| UDN2916EB | 44-lead PLCC | No | -20 °C to 85 °C | discontinued |
| UDN2916EB-T | 44-lead PLCC | Yes | -20 °C to 85 °C | new |
| UDN2916EBTR | 44-lead PLCC | No | -20 °C to 85 °C | discontinued |
| UDN2916EBTR-T | 44-lead PLCC | Yes | -20 °C to 85 °C | new |
| UDN2916LB | 24-lead SOIC | No | -20 °C to 85 °C | discontinued |
| UDN2916LB-T | 24-lead SOIC | Yes | -20 °C to 85 °C | new |
| UDN2916LBTR | 24-lead SOIC | No | -20 °C to 85 °C | discontinued |
| UDN2916LBTR-T | 24-lead SOIC | Yes | -20 °C to 85 °C | new |
| UDQ2916B | 24-pin DIP | No | -40 °C to 105 °C | discontinued |
| UDQ2916EB | 44-lead PLCC | No | -40 °C to 105 °C | discontinued |
| UDQ2916EBTR | 44-lead PLCC | No | -40 °C to 105 °C | discontinued |
| UDQ2916LB | 24-lead SOIC | No | -40 °C to 105 °C | discontinued |
| UDQ2916LB-T | 24-lead SOIC | Yes | -40 °C to 105 °C | new |
| UDQ2916LBTR | 24-lead SOIC | No | -40 °C to 105 °C | discontinued |
| UDQ2916LBTR-T | 24-lead SOIC | Yes | -40 °C to 105 °C | new
|
