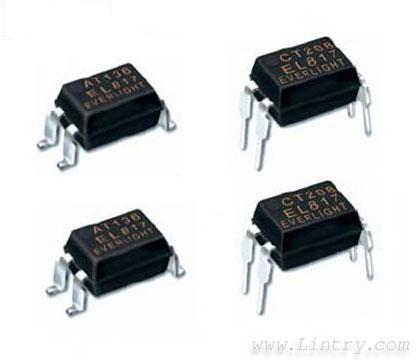

Photocouple EL817 EVERLIGHT New Part stock!
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
share to：
- Production
- Technology
- Configuration
- Download
Production：
【Part No.】 EL817【Category】 Photocoupler
【Package】 DIP/ SMD
【MFQ】 EVERLIGHT
【Datasheet】EL817 Datasheet
Features:
• Current transfer ratio
(CTR:MIN.50% at IF =5mA ,VCE =5V)
• High isolation voltage between input
and output (Viso=5000 V rms )
• Compact dual-in-line package
EL817*:1-channel type
• Pb free
• UL approved (No. E214129)
• VDE approved (No. 132249)
• SEMKO approved (No. 300858,300859,304855,
304827,2022251,0143133/01-03,0101083/01,
303345,303349)
• NEMKO approved (No. P04203585, P00102385,
P02101854)
• DEMKO approved (No. 311822-01/02/03,310352-01,
311822-03A)
• CSA approved (No. 1143601)
• BSI approved (No. 8592, 8593)
• Options available:
- Leads with 0.4”(10.16mm) spacing (M Type)
- Leads bends for surface mounting (S and S1 Type)
- Tape and Reel of TypeⅠ for SMD(Add”-TA” Suffix)
- Tape and Reel of TypeⅡ for SMD(Add”-TB” Suffix)
- The tape is 16mm and is wound on a 33cm reel
• The product itself will remain within RoHS compliant
Description
The EL817 series contains a infrared emitting diode optically
coupled to a phototransistor. It is packaged in a 4-pin DIP package
and available in wide-lead spacing and SMD option.
Applications
• Computer terminals
• System appliances, measuring instruments
• Registers, copiers, automatic vending machines
• Electric home appliances, such as fan heaters, etc.
• Signal transmission between circuits of different potentials and impedances
