【Part No.】 FSDL0165RN【Category】 Power Switch
【Packing】 DIP8
【MFQ】 Fairchild
【Datasheet】FSDL0165RN Datasheet
Description
The FSDL0165RN is an integrated Pulse Width Modulator
(PWM) and Sense FET specifically designed for high performance
offline Switch Mode Power Supplies (SMPS) with
minimal external components. This device is an integrated
high voltage power switching regulator which combine an
avalanche rugged Sense FET with a current mode PWM
control block. The integrated PWM controller features
include: a fixed oscillator with frequency modulation for
reduced EMI, Under Voltage Lock Out (UVLO) protection,
Leading Edge Blanking (LEB), optimized gate turn-on/turnoff
driver, Thermal Shut Down (TSD) protection, Abnormal
Over Current Protection (AOCP) and temperature compensated
precision current sources for loop compensation and
fault protection circuitry. When compared to a discrete
MOSFET and controller or RCC switching converter solution,
the FSDL0165RN reduce total component count,
design size, weight and at the same time increases efficiency,

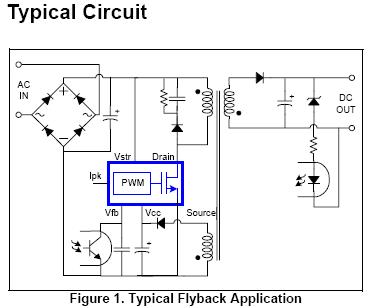

productivity, and system reliability. This device is a basic
platform well suited for cost effective designs of flyback
converters.
Features
• Internal Avalanche Rugged Sense FET
• Consumes only 0.65W at 240VAC & 0.3W load with
Advanced Burst-Mode Operation
• Frequency Modulation for low EMI
• Precision Fixed Operating Frequency
• Internal Start-up Circuit
• Pulse by Pulse Current Limiting
• Abnormal Over Current Protection
• Over Voltage Protection
• Over Load Protection
• Internal Thermal Shutdown Function
• Auto-Restart Mode
• Under Voltage Lockout
• Low Operating Current (3mA)
• Adjustable Peak Current Limit
• Built-in Soft Start
Applications
• SMPS for VCR, SVR, STB, DVD & DVCD
• SMPS for Printer, Facsimile & Scanner
• Adaptor for Camcorder
