GENERAL DESCRIPTION

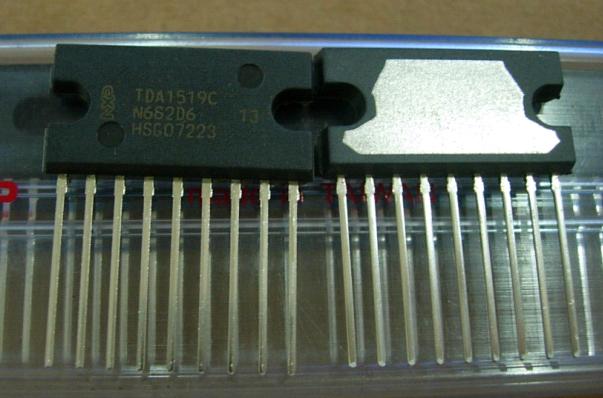

The TDA1519C is an integrated class-B dual output
amplifier in a 9-lead plastic single in-line power package or
20-lead heatsink small outline package.
For the TDA1519CTH (SOT418-3), the heatsink is
positioned on top of the package, which allows an external
heatsink to be mounted on top. The heatsink of the
TDA1519CTD (SOT397-1) is facing the PCB, allowing the
heatsink to be soldered onto the copper area of the PCB.

FEATURES

¡¤ Requires very few external components for Bridge-Tied
Load (BTL) operation
¡¤ Stereo or BTL application
¡¤ High output power
¡¤ Low offset voltage at output (important for BTL
applications)
¡¤ Fixed gain
¡¤ Good ripple rejection
¡¤ Mute/standby switch
¡¤ Load dump protection
¡¤ AC and DC short-circuit safe to ground and VP
¡¤ Thermally protected
¡¤ Reverse polarity safe
¡¤ Capability to handle high energy on outputs (VP = 0 V)
¡¤ No switch-on/switch-off plops
¡¤ Protected against electrostatic discharge
¡¤ Low thermal resistance
¡¤ Identical inputs (inverting and non-inverting)
¡¤ Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).
