NXP TDA1519C 22 W BTL or 2 x 11 W stereo power amplifier!
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
share to：
- Production
- Technology
- Configuration
- Download
Production：

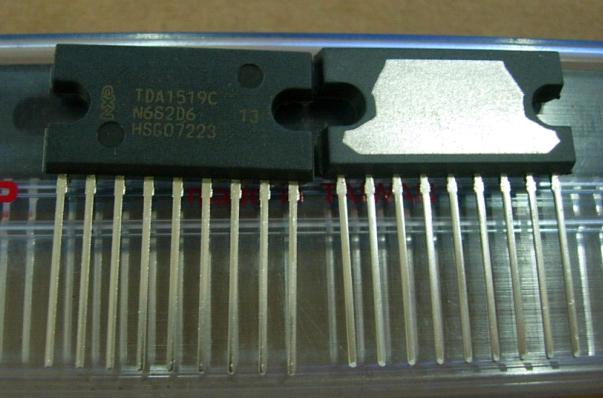

【Part No.】 TDA1519C【Category】 stereo power amplifier
【Packing】 SOT131-2
【MFQ】 NXP
【Datasheet】TDA1519C Datasheet
GENERAL DESCRIPTION
The TDA1519C is an integrated class-B dual output
amplifier in a 9-lead plastic single in-line power package or
20-lead heatsink small outline package.
For the TDA1519CTH (SOT418-3), the heatsink is
positioned on top of the package, which allows an external
heatsink to be mounted on top. The heatsink of the
TDA1519CTD (SOT397-1) is facing the PCB, allowing the
heatsink to be soldered onto the copper area of the PCB.
FEATURES
· Requires very few external components for Bridge-Tied
Load (BTL) operation
· Stereo or BTL application
· High output power
· Low offset voltage at output (important for BTL
applications)
· Fixed gain
· Good ripple rejection
· Mute/standby switch
· Load dump protection
· AC and DC short-circuit safe to ground and VP
· Thermally protected
· Reverse polarity safe
· Capability to handle high energy on outputs (VP = 0 V)
· No switch-on/switch-off plops
· Protected against electrostatic discharge
· Low thermal resistance
· Identical inputs (inverting and non-inverting)
· Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).
