Production£º

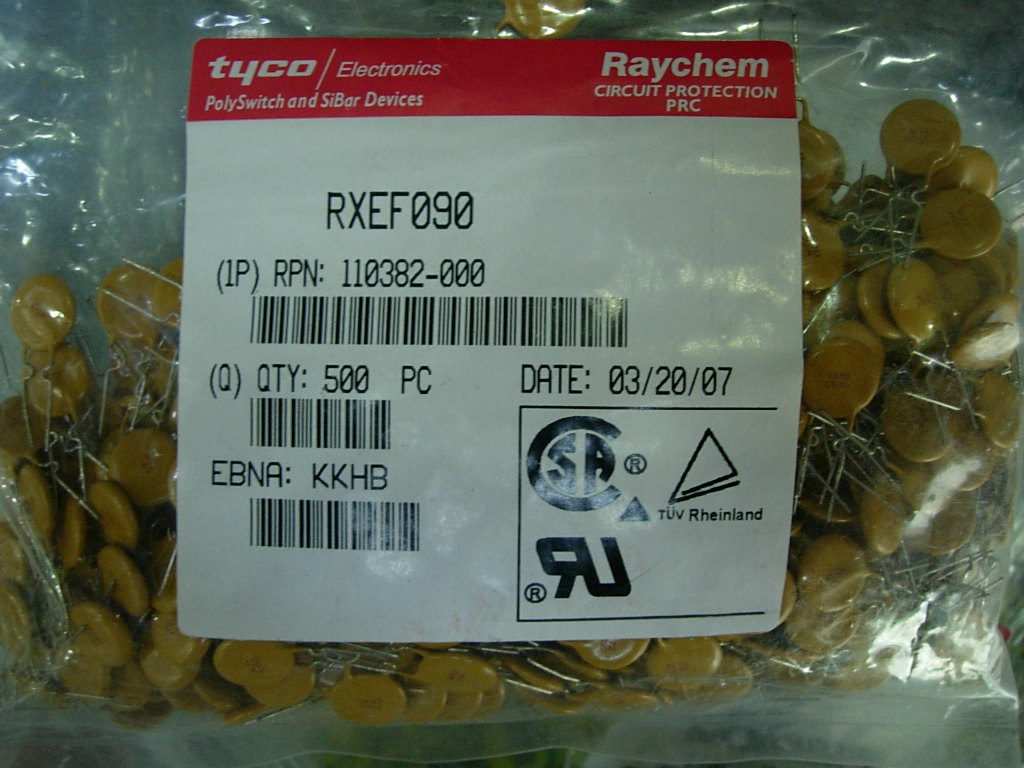

¡¾Part No.¡¿     RXEF090
¡¾Category¡¿   PolySwitch
¡¾MFQ¡¿           Raychem/ Tyco
¡¾Datasheet¡¿RXEF090 Datasheet

Product Type Features:

• UL Recognized = File No. E74889

Electrical Characteristics:

• IH (Room Temperature) (Amps.)= 0.9
• IT (Room Temperature) (Amps.)= 1.80
• Vmax Operating (V)= 72
• Rmin (Ω)= 0.20
• Rmax (Ω)= 0.310
• R1 Max [Post Trip] (Ω)= 0.47
• UL Rated Current (Amps.)= 40
• Tripped Power Dissipation (Typical) (W) = 0.99

Termination Related Features:

• Construction = Radial, Through Hole

Body Related Features:

• Lead Type = Standard Kinked Lead
• CSA File No. = 78165C

Contact Related Features:

• Family Name= RXE

Configuration Related Features:

• Coating = Coated

Industry Standards:

• RoHS/ELV Compliance= ELV compliant
• Lead Free Solder Processes= Wave solder capable to 240¡ãC, Wave solder capable to 260¡ãC, Wave solder capable to 265¡ãC
• RoHS/ELV Compliance History = Always was ELV compliant
• TUV Certificate No. = R72041428

Conditions for Usage:

• Operating Temperature (Max.) (¡ãC)= 85

Operation/Application:

• Application = Radial

Packaging Related Features:

• Packaging Method = Bulk

Other:

• Brand = Raychem
