Production£º

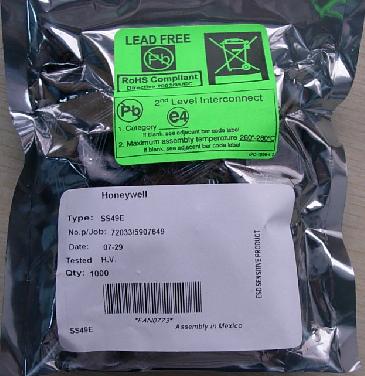

¡¾Part No.¡¿    SS49E
¡¾Category¡¿  Economical Linear Position Sensor
¡¾Packing¡¿    3-pin SIP
¡¾MFQ¡¿           Honeywell
¡¾Datasheet¡¿SS49E datasheet

Description

The SS49E and SS59ET Series Economical Linear Hall-effect sensors are
small, versatile linear Hall-effect devices that are operated by the magnetic
field from a permanent magnet or an electromagnet. The linear sourcing
output voltage is set by the supply voltage and varies in proportion to the
strength of the magnetic field.

The integrated circuitry features low noise output, which makes it
unnecessary to use external filtering. It also includes thin film resistors to
provide increased temperature stability and accuracy. These linear Hall
sensors have an operating temperature range of -40 ¡ãC to 100 ¡ãC [-40 ¡ãF
to 212 ¡ãF], appropriate for commercial, consumer, and industrial
environments.

FEATURES
• Miniature construction
•  Power consumption of 6 mA at 5 Vdc for energy efficiency
•  Single current sourcing output
•  Linear output for circuit design flexibility
•  Low noise output virtually eliminates the need for filtering
•  Thin film resistors for a stable and accurate output
•  Temperature range of     -40 ¡ãC to 100 ¡ãC [-40 ¡ãF to  212 ¡ãF]
•  Responds to either positive or negative gauss

TYPICAL APPLICATIONS
• Current sensing
• Motor control
• Position sensing
•  Magnetic code reading
• Rotary encoder
•  Ferrous metal detector
• Vibration sensing
• Liquid level sensing
• Weight sensing
