Production£º

¡¾Part No.¡¿   MMBT3904
¡¾Category¡¿ NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
¡¾Packing¡¿   SOT-23
¡¾MFQ¡¿        Diodes
¡¾Datasheet¡¿MMBT3904 datasheet

Feature

• Epitaxial Planar Die Construction
• ComplementaryPNP Type Available
  (MMBT3906)
• Ideal for Medium Power Amplification and Switching
• Available in Lead Free/RoHS Compliant Version
  (Note 2)

Mechanical data

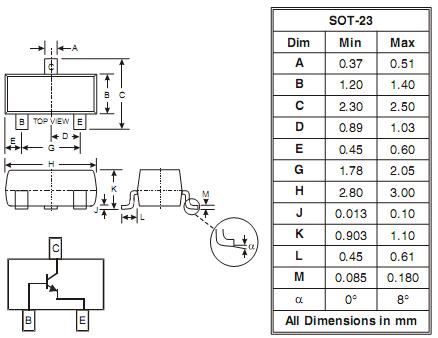

• Case: SOT-23
• Case Material: Molded Plastic. ULFlammability
  Classification Rating 94V-0
• Moisture sensitivity: Level 1 per J-STD-020C
• Terminal Connections: See Diagram
• Terminals:Solderable per MIL-STD-202, Method 208
• Also Available in Lead Free Plating (Matte Tin
  Finish annealed over Alloy 42 leadframe). Please see
  Ordering Information, Note 5, on Page 2
• Marking (See Page 2): K1N
• Ordering & Date Code Information: See Page 2
• Weight: 0.008 grams (approximate)
