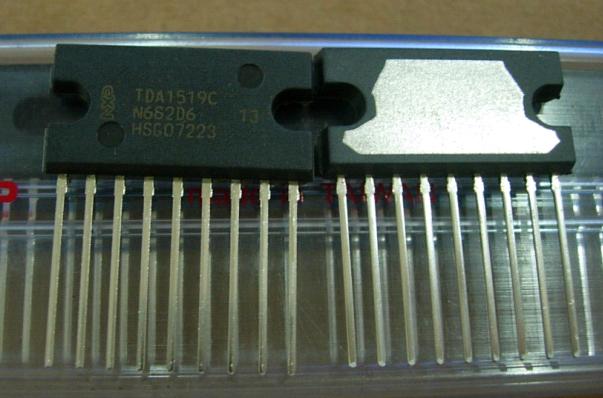

NXP TDA1519C SIP9 package 22 W BTL or 2 x 11 W stereo power amplifier!

Description：

print

tel：0755-83031813

email：sumzi@sumzi.com

share to：
  • Production
  • Technology
  • Configuration
  • Download

Production：

【Part No.】   TDA1519C
【Category】  22 W BTL or 2 x 11 W stereo power amplifier
【Packing】   SIP9
【MFQ】        NXP
【Datasheet】TDA1519C datasheet

GENERAL DESCRIPTION


The TDA1519C is an integrated class-B dual output
amplifierina9-leadplasticsinglein-linepowerpackageor
20-lead heatsink small outline package.
For the TDA1519CTH (SOT418-3), the heatsink is
positionedontopofthepackage,whichallowsanexternal
heatsink to be mounted on top. The heatsink of the
TDA1519CTD(SOT397-1)isfacingthePCB,allowingthe
heatsink to be soldered onto the copper area of the PCB.

Features:

  • Requires very few external components for Bridge-Tied Load (BTL) operation
  • Stereo or BTL application
  • High output power
  • Low offset voltage at output (important for BTL applications)
  • Fixed gain
  • Good ripple rejection
  • Mute/standby switch
  • Load dump protection
  • AC and DC short-circuit safe to ground and VP
  • Thermally protected
  • Reverse polarity safe
  • Capability to handle high energy on outputs (VP =0 V)
  • No switch-on/switch-off plops
  • Protected against electrostatic discharge
  • Low thermal resistance
  • Identical inputs (inverting and non-inverting)
  • Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).
