Production：

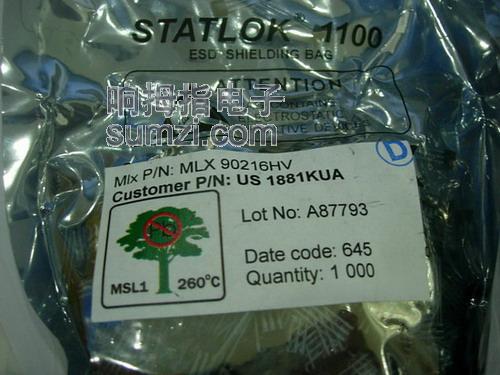

【产品名称】 US1881KUA
【产品类别】 霍尔传感器
【产品用途】 红外线、温度传感器
【产品规格】 SIP3(TO-92)
【生产厂家】 Melexis
【技术参数】 US1881UA 参数下载 DATESHEET
【产品说明】 过滤由于读频率输入而引起的高电流转换, 防止温度过高，运用在低温及人造自动机械IC方面
【产品类别】 霍尔传感器
【产品用途】 红外线、温度传感器
【产品规格】 SIP3(TO-92)
【生产厂家】 Melexis
【技术参数】 US1881UA 参数下载 DATESHEET
【产品说明】 过滤由于读频率输入而引起的高电流转换, 防止温度过高，运用在低温及人造自动机械IC方面
The Melexis US1881 is a Hall-effect latch designed in mixed signal CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all
in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in automotive, industrial and consumer applications.
The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.
Both 3-lead packages are RoHS compliant.
in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in automotive, industrial and consumer applications.
The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.
Both 3-lead packages are RoHS compliant.
Features and Benefits
Chopper stabilized amplifier stage
Optimized for brushless DC motor applications
Miniature high reliability package
Operation down to 3.5V
CMOS for optimum stability, quality and cost
Low power consumption
Ordering Information
温度后缀说明（Temperature Suffix）
E (-40°C to 85°C)
K (-40°C to 125°C)
L (-40°C to 150°C)
封装后缀说明（Package Code）
SO (SOT-23) or UA(TO-92)
SO (SOT-23) or UA(TO-92)
SO (SOT-23) or UA(TO-92)
