代替已经停产UGN3503UA 型号A1302 参数
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
- Production
- Technology
- Configuration
- Download
Production：
A1302EUA-T 数量 大量库存
A1302EUA-T 封装 3-pin SIP TO-92
A1302.pdf
询价热线：
0755－83283733, 83031813，33062500
QQ：623069669
MSN：sumzi003@sumzi.com sumzi006@sumzi.com
Email:sumzi@sumzi.com
http://www.sumzi.com
UGN3503
Ratiometric Linear Hall-Effect Sensors
These parts have been phased out of production as of October 31, 2005, and the drop-in replacement is the A1302, with a more sensitive option also available, the A1301.
For samples and information on the replacement part, please refer to the A1302.
Replacement Device Characteristics Table
| Device | A130x Characteristics | |||
|---|---|---|---|---|
| Typical Sensitivity | Operating Voltage | |||
| Legacy | Replacement | Min | Max | |
| - | A1301 | 2.5 mV/G | 4.5 V | 6 V |
| UGN3503 | A1302 | 1.3 mV/G | 4.5 V | 6 V |
Features
- Extremely Sensitive
- Flat Response to 23 kHz
- Low-Noise Output
- 4.5 V to 6 V Operation
- Magnetically Optimized Package
Description
The UGN3503LT, UGN3503U, and UGN3503UA Hall-effect sensors accurately track extremely small changes in magnetic flux density-changes generally too small to operate Hall-effect switches. As motion detectors, gear tooth sensors, and proximity detectors, they are magnetically driven mirrors of mechanical events. As sensitive monitors of electromagnets, they can effectively measure a system's performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.
Each Hall-effect integrated circuit includes a Hall sensing element, linear amplifier, and emitter-follower output stage. Problems associated with handling tiny analog signals are minimized by having the Hall cell and amplifier on a single chip.

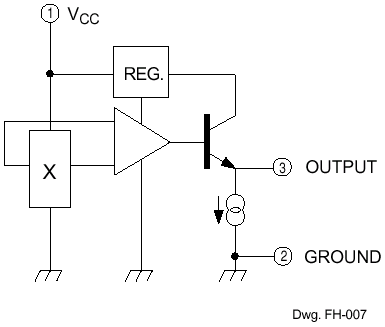

Functional Block Diagram
