DATASHEET PDF

MLX90242LUA.pdf

    Features and Benefits

    MLX90242 Linear Hall Effect Sensor

    ¡£ Quad Switched Hall Plate / Chopper Stabilized Amplifier¡£ Ratiometric Output
for A/D Interface ¡£ Low Quiescent Voltage Thermal Drift¡£ Small Plastic Packages

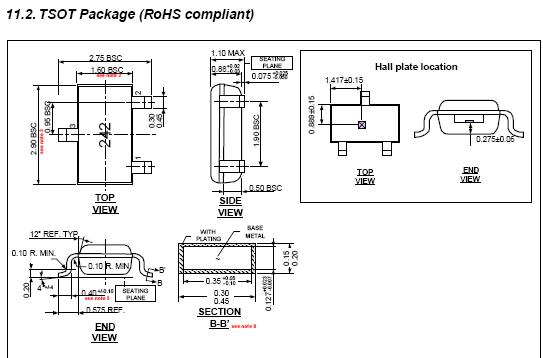

£¨TSOT£¬ 4-SIP-VA £¬ TO-92£©¡£ RoHS compliant TSOT package Applications ¡£ Linear
Position Sensing¡£ Rotary Position Sensing¡£ Current Sensing

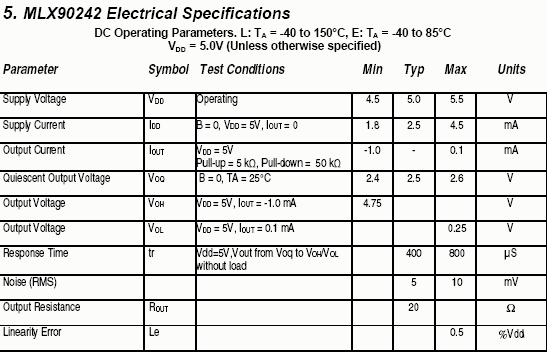

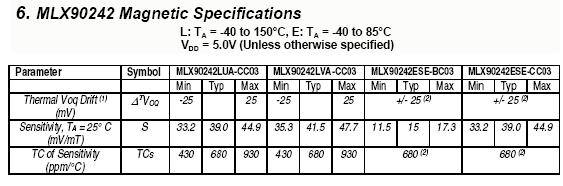

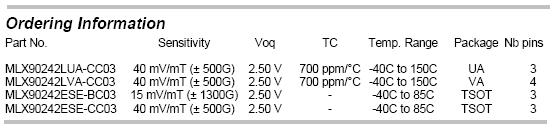

    Description

    The MLX90242 is a CMOS Linear Hall Effect sensor IC. It possesses active error
correction circuitry which virtually eliminates the offset errors normally associated
with analog Hall Effect devices.

    The ratiometric output voltage is proportional to the supply voltage. When using
the supply voltage as a reference for an A/D converter£¬fluctuations of +10% in
supply voltage will not affect accuracy. For a positive slope £¬ the voltage

    at the output will increase as a South magnetic field is applied to the branded
face of the

    MLX90242. Conversely£¬ the voltage output will decrease in the presence of a
North magnetic field. For a negative slope£¬ the voltage at the output will increase
as a North magnetic field is applied to the branded face of the MLX90242.

    Conversely£¬ the voltage output will decrease in the presence of a South magnetic
field

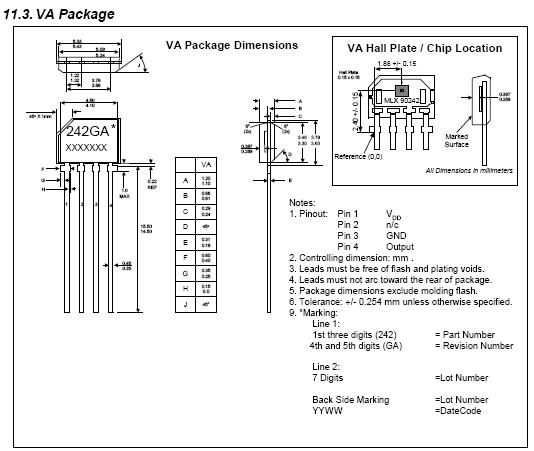

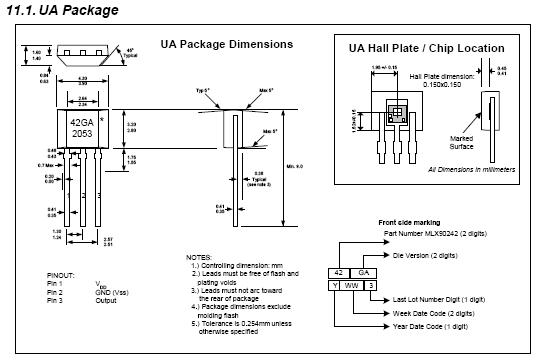

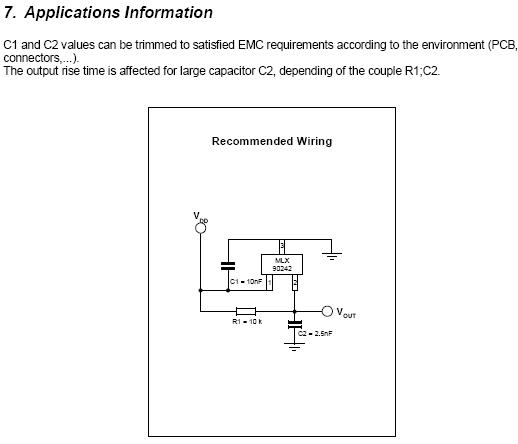

    Installation Comments

    1.£© Avoid mechanical stress on leads or package. Stress may cause Voq shift.
A.£© Avoid bending leads at the package interface. B. £© Support the leads by clamping£¬
when bending. C.£© Avoid gluing device to another material. This may cause temperature-related
stress. 2.£© CMOS products are static sensitive devices £¬ please observe ESD precautions.
3.£© Observe temperature limits during soldering

    Standard information regarding manufacturability of Melexis products with different
soldering processes

    Our products are classified and qualified regarding soldering technology£¬ solderability
and moisture sensitivity level according to following test methods£º

    Reflow Soldering SMD's£¨Surface Mount Devices £©

    " IPC/JEDEC J-STD-020 Moisture/Reflow Sensitivity Classification for Nonhermetic
Solid State Surface Mount Devices £¨classification reflow profiles according to
table 5-2 £©

    " EIA/JEDEC JESD22-A113 Preconditioning of Nonhermetic Surface Mount Devices
Prior to Reliability Testing£¨reflow profiles according to table 2£©

    Wave Soldering SMD's£¨Surface Mount Devices £© and THD's£¨Through Hole Devices£©

    " EN60749-20 Resistance of plastic- encapsulated SMD's to combined effect of
moisture and soldering heat " EIA/JEDEC JESD22-B106 and EN60749-15 Resistance to
soldering temperature for through-hole mounted devices

    Iron Soldering THD's£¨Through Hole Devices£©

    " EN60749-15 Resistance to soldering temperature for through-hole mounted devices

    Solderability SMD's £¨Surface Mount Devices £© and THD's£¨Through Hole Devices£©

    " EIA/JEDEC JESD22-B102 and EN60749-21 Solderability

    For all soldering technologies deviating from above mentioned standard conditions
£¨regarding peak temperature£¬ temperature gradient £¬ temperature profile etc£©
additional classification and qualification tests have to be agreed upon with Melexis.

    The application of Wave Soldering for SMD's is allowed only after consulting
Melexis regarding assurance of adhesive strength between device and board.

    Melexis is contributing to global environmental conservation by promoting lead
free solutions. For more information on qualifications of RoHS compliant products
£¨RoHS = European directive on the Restriction Of the use of certain Hazardous Substances£©
please visit the quality page on our website£ºhttp://www.melexis.com/quality.asp

    10. ESD Precautions Electronic semiconductor products are sensitive to Electro
Static Discharge£¨ESD £©¡£

    Always observe Electro Static Discharge control procedures whenever handling
semiconductor products.
