TLE4966H Ïêϸ½éÉÜ
TLE4966H ÐͺÅ
INFINEON Æ·ÅÆϵÁвúÆ· TLE4966H
TLE4966H ÅúºÅ 07+ROHS
TLE4966H ÊýÁ¿ 12000
TLE4966H ·â×° 6-lead SOIC
TLE4966H °ü×° 3000PCS/reel
TLE4966H ±¸×¢ in stock
TLE4966H PDF¼¼Êõ×ÊÁÏ

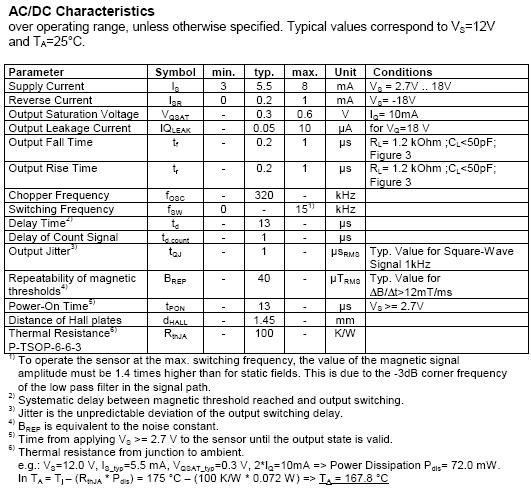

Features

¡¤  2.7V to 24V supply voltage operation

¡¤  Operation from unregulated power supply

¡¤  High sensitivity and high stability of the

magnetic switching points

¡¤  High resistance to mechanical stress by active

error compensation

¡¤  Reverse battery protection (-18V)

¡¤  Superior temperature stability

¡¤  Peak temperatures up to 195¡ãC without

damage

¡¤  Low jitter (typ. 1µs)

¡¤  Digital output signal

¡¤ Bipolar version

¡¤  Excellent matching between the 2 Hal  probes

¡¤  Hal  plate distance 1.45mm

¡¤  Direction & speed information

¡¤  Direction signal switches 1 µs before the speed signal

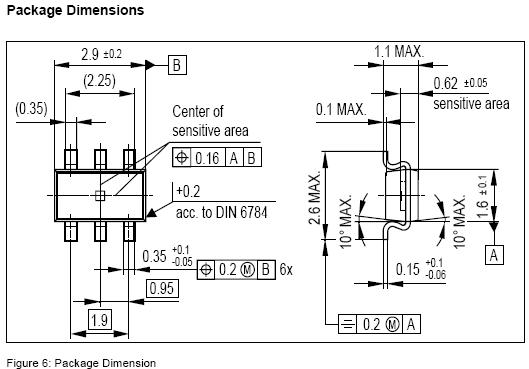

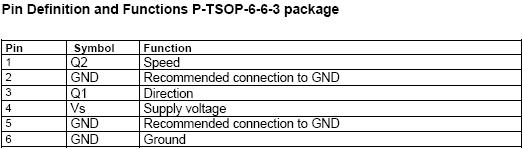

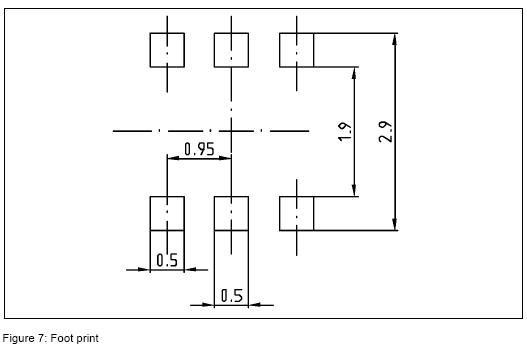

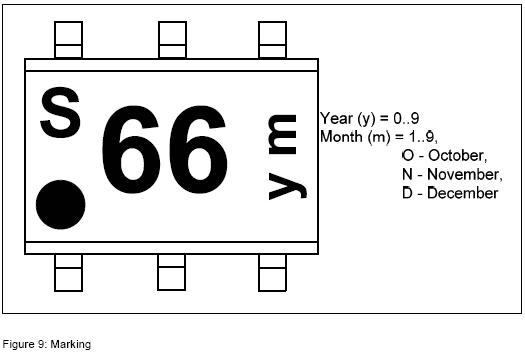

¡¤  SMD package P-TSOP-6-6-3

Functional Description

The TLE4966H is an integrated circuit double Hall-effect sensor designed specifically for
highly accurate applications. Precise magnetic switching points and high temperature
stability are achieved by active compensation circuits and chopper techniques on chip.

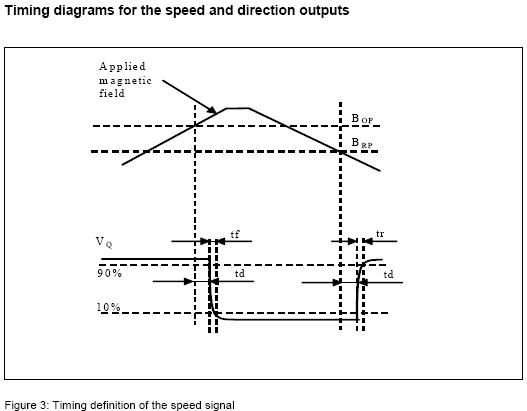

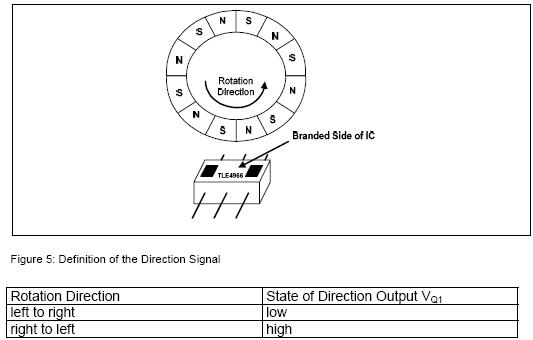

The TLE4966H provides a speed signal at Q2 for every magnetic pole pair and a direction

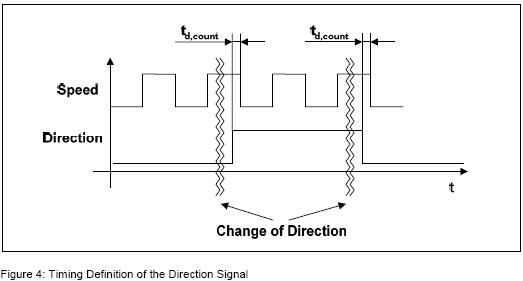

information at Q1. The direction output switches 1µs (min.) before the speed output.

Circuit Description

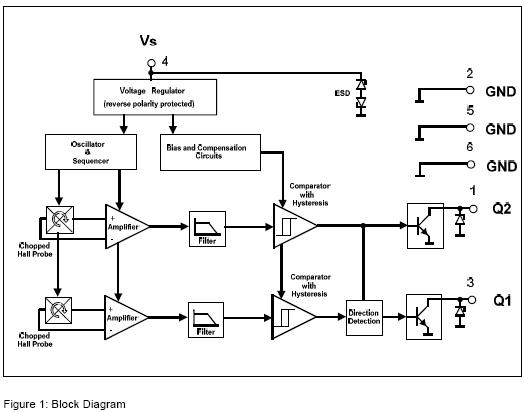

The chopped Double Hall Switch comprises two Hall probes, bias generator,
compensation circuits, oscillator, and output transistors.
The bias generator provides currents for the Hall probes and the active circuits.
Compensation circuits stabilize the temperature behavior and reduce technology
variations.
The Active Error Compensation rejects offsets in signal stages and the influence of
mechanical stress to the Hall probes caused by molding and soldering processes and
other thermal stresses in the package. This chopper technique together with the threshold

generator and the comparator ensures high accurate magnetic switching points.
