Production£º

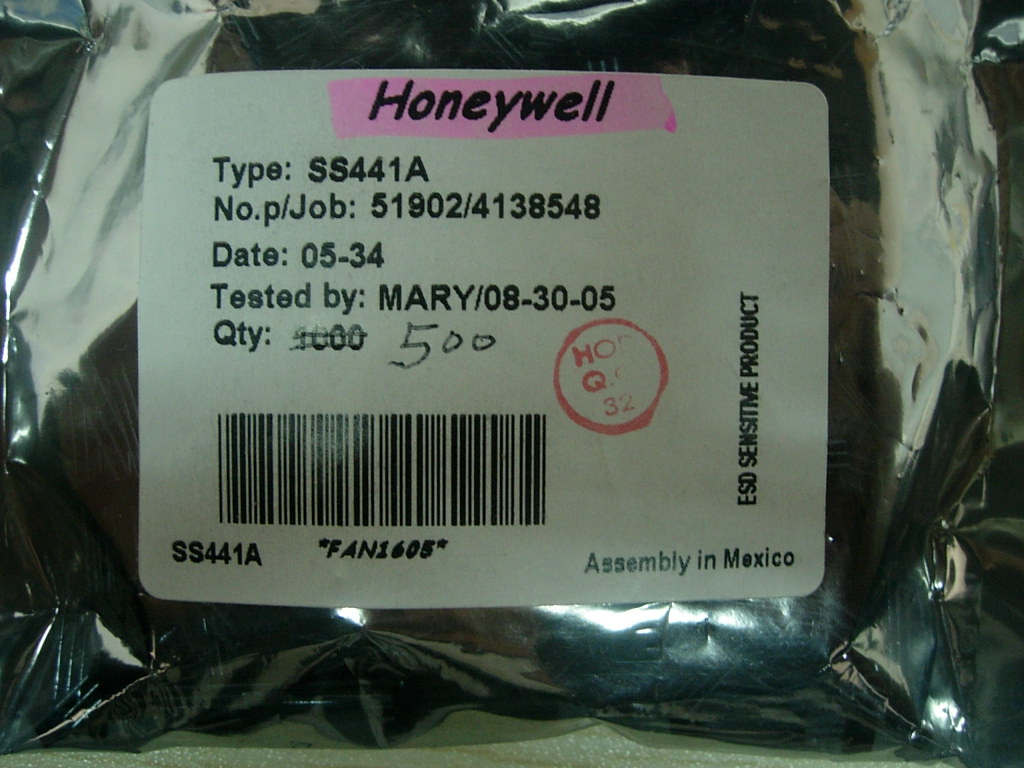

¡¾Part No.¡¿   SS441A
¡¾Category¡¿ Hall-effect sensors
¡¾Packing¡¿   3-pin SIP
¡¾MFQ¡¿        Honeywell
¡¾Datasheet¡¿SS441A Datasheet

FEATURES

• 3.8-30 VDC supply voltage
• Digital current sinking output
• 3 pin in-line PCB terminals
• Quad-Hall design virtually eliminates mechanical stress effects
• Temperature compensated magnetics
• Operate/release points can be customized
• Bipolar, unipolar, latching magnetics
• High output current capability ¨C50 mA absolute maximum
• Operate/release points symmetrical around zero gauss (bipolar/latch)
• Operating temperature range of ¨C40 to +150¡ãC (¨C40 to +302¡ãF)
• Package material: Plaskon 3300H
• Surface mount version available: SS400-S (with cut and formed leads)

SS400 Series position sensors have a thermally balanced integrated circuit over  full temperature range. The negative compensation slope is optimized to match the negative temperature coefficient
of lower cost magnets. Bipolar, latching and unipolar magnetics are available.
Band gap regulation provides extremely stable operation over 3.8 to 30 VDC supply voltage range. SS400 sensors are capable of continuous 20 mA sinking output, and may be cycled as high as 50 mA maximum.
