ATS665LSG
True Zero-Speed Hall-Effect Adaptive Gear-Tooth Sensors
Sumzi
Features and Benefits
- True zero-speed operation
- Air-gap independent switch points
- High vibration immunity
- Precise duty cycle over temperature
- Large operating air gap range
- Defined power-on state
- Wide operating voltage range
- Digital output representing target profile
- Single-chip sensing IC for high reliability
- Small mechanical size (8 mm diameter x 5.5 mm length)
- Optimized Hall IC magnetic circuit
- Short power up time
- AGC and reference adjust circuit
- Under-voltage lockout
Description
The ATS665LSG is an optimized Hall IC/magnet configuration packaged as a module that provides a user-friendly solution for digital gear-tooth-sensing applications. This digital differential Hall-effect sensor is the choice when repeatability and timing accuracy count. The module incorporates patented self-calibration circuitry that nulls out the effects of installation air gap, ambient temperature, and magnet offsets to provide superior timing accuracy with symmetrical targets over large operating air gaps — typical of targets used in speed-sensing automotive transmission applications. The self-calibration at power up keeps the performance optimized over the life of the sensor. The ATS665LSG has an open-collector output for direct digital interfacing with no further signal processing required.
The integrated circuit incorporates a dual-element Hall-effect sensor and signal processing that switches in response to differential magnetic signals created by a ferrous target. The circuitry contains a sophisticated digital circuit to eliminate the detrimental effects of magnet and system offsets and to achieve true zero-speed operation. Digital processing of the analog signal provides zero-speed performance independent of air gap and also dynamic adaptation of device performance to the typical operating conditions found in automotive applications (reduced vibration sensitivity). High-resolution, peak detecting DACs are used to set the switching thresholds; hysteresis reduces the negative effects of any anomalies in the magnetic signal associated with the target.

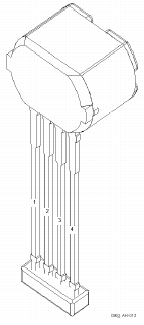

This sensor’s ability to provide tight duty cycle at high speeds and over a wide temperature range makes it ideal for transmission and industrial speed applications. The ATS665 is available in the SG package in the automotive temperature range, -40° to 150° (L).

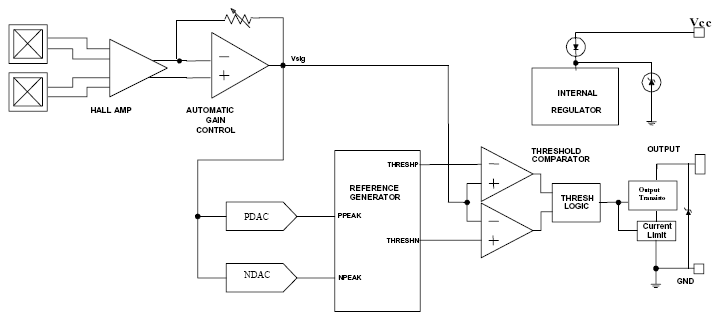

Functional Block Diagram
| Part Number | Package Type | RoHS | Temperature |
| Compliant | |||
| ATS665LSG | 4-lead module | No | -40 °C to 150 °C |
| ATS665LSGTN | 4-lead module | No | -40 °C to 150 °C |
| ATS665LSGTN-T | 4-lead module | Yes | -40 °C to 150 °C |
