MST 锁存型单向输出霍尔效应开关MH181 ~~~厂商请注意啦！！！！
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
share to：
- Production
- Technology
- Configuration
- Download
Production：
MST 产品一览表：
| Ordering Number | Signal Output | Temperature | Package | Voltage range |
Supply Current |
Sensitivity | Status |
| MH 248B | non | -40℃- 85℃ | UA/SO/SU | 2.5V - 5.0V | 8uA(Avg) | 13G to 40G | sampling |
| MH 281 | -40℃- 125℃ | UA/SO | 2.4 V - 27V | 175 Gauss | Now | ||
| MH 481 | Linear | -40℃- 100℃ | UA | 3V - 6.5V | 1.5mA/Gauss | Now | |
| MH 249-alfa | -40℃- 125℃ | SO | 2.5V to 6V | 1mA | 45G | Now | |
| MH 186 | non | -40℃- 125℃ | UA/SO | 3.5V - 25V | 30G | Now | |
| MH 249 | -40℃- 85℃ | SO | 2.5V - 5.0V | 25mA | 45G | Now | |
| MH 185 | -40℃- 125℃ | UA/SO | 2.5V - 5V | 1mA | 35G | Now | |
| MH-181 | Non | -20℃- 125℃ | UA | 3.5V - 20V | 25mA | 90G | Now |
| MH-182 | Non | -40℃- 125℃ | UA/SO | 2.4V - 27V | 60G | Now | |
| MH-248 | Non | -40℃- 85℃ | UA/SO/ST/SU | 2.5V - 3.5V | 8uA(Avg) | 5G to 60G | Now |

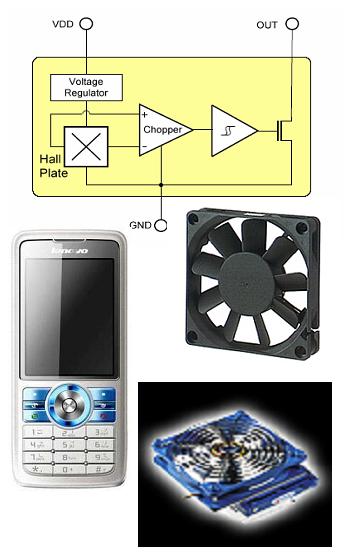

MH181 MST 锁存型单向输出霍尔效应开关可应用于电机里的风扇,电单车等!
可替代Allegro A1210,A1211,A3280,A3281
技术参数:
MH181.pdf
MH-181 Non -20℃- 125℃
Ordering Number
Signal Output
Temperature
Package
UA
Voltage range
-20℃- 125℃
Output current
25mA
Sensitivity
90G
Status
Now
note

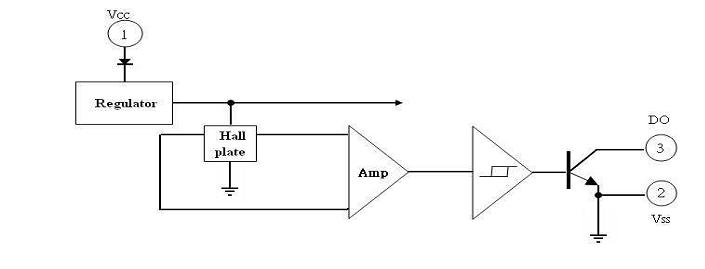

Single Output Hall Effect Latch
