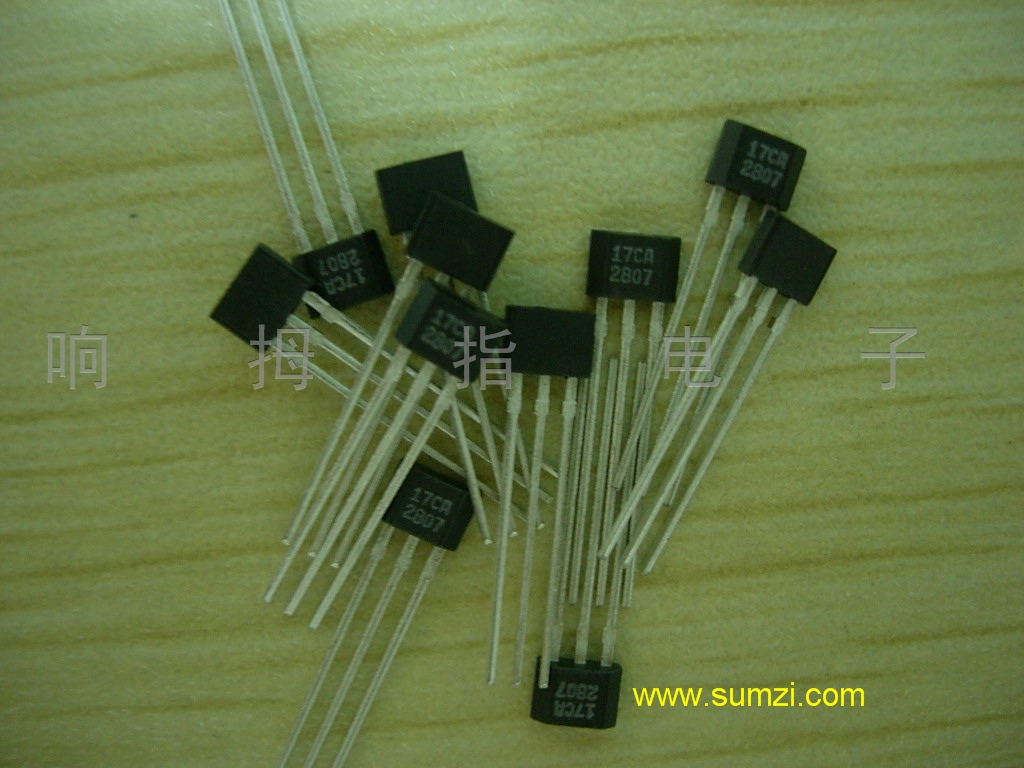

响拇指优势货品 齿轮传感器MLX90217LUA
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
- Production
- Technology
- Configuration
- Download
Production：
响拇指优势货品 齿轮传感器MLX90217LUA ，大量现货，欢迎各界人士前来订购。
MLX90217LUA 型号
MELEXIS品牌系列产品 MLX90217LUA
MLX90217LUA 批号 08+
MLX90217LUA 数量 5000
MLX90217LUA 封装 3-pin SIP
MLX90217LUA 包装 original/IN STOCK
MLX90217LUA 备注
MLX90217LUA PDF技术资料
MLX90217LUA 询价 13802552672黄少华（小姐）
Features and Benefits
Rotary Position Gear Tooth Sensor
Short Circuit Protection
On-chip 10 bit A/D Converter
Self-Adjusting Magnetic Range
High Speed Operation
No Chopper Delay
Zero Speed Detection
No Rotary Orientation Concerns
技术参数：
MLX90217LUA.pdf应用 : 固态开关;无绳电话提醒;开翻盖式手机电源
General Description
The MLX90217 is a self adjusting digital output rotary position gear tooth sensor designed for use in automotive camshaft sensing as well as other speed sensing applications. It is designed to be used with a bias magnet south facing the back (non-marked) side of the IC. The device has an open collector output which is short circuit protected.
The MLX90217 is a sophisticated IC featuring an on-chip 10-bit A/D Converter and logic that acts as a digital sample and hold circuit. A separate 4-bit A/D converter provides a fixed hysteresis. The 90217 does not have a chopper delay. The 90217 uses a single Hall plate which is immune to rotary alignment problems. The bias magnet can be from 50 to 400mT.
As the signal is sampled, the logic recognizes an increasing or decreasing flux density. The output will turn on (BOP) after the flux has reached its peak and decreased by an amount equal to the hysteresis. Similarly the output will turn off (BOP) after the flux has reached its minimum value and increased by an amount equal to the hysteresis.
