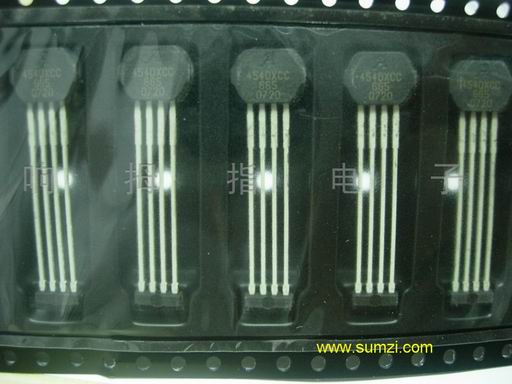

最新到货 10K ATS665LSGTN-T 齿轮速度传感器 ATS665LSGTN-T
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
- Production
- Technology
- Configuration
- Download
Production：
该模块集成的霍尔元件可消除与传统单元件督办传感器相关的后偏置磁场的变化。
SG封装还消除了封装和成形之后的空气气泡。磁体与IC封装的结合可改善散热，使得该器件工作在-40℃至160℃的温度范围。
该模块工作电压3.3V至24V，工作电流14mA。ATS665通电并经过一个校准周期后，传感器就可以提供转动齿轮的数字信息。高分解度、峰值检测的DAC用于设定切换阈值。
联系人：曾春华 手机：13802553295
电话0755-83031813 传真：0755-83299282
MSN：sumzi006@sumzi.com QQ：623069669
【产品说明】 ALLEGRO 品牌系列产品 ATS665LSG-T
ATS665LSG-T 批号 10+
ATS665LSG-T 封装
ATS665LSG-T 包装 800/reel
ATS665LSG-T 备注
ATS665LSG-T PDF技术资料
True Zero Speed,
High Accuracy, Gear Tooth Sensor
The ATS665 true zero-speed gear tooth sensor is an optimized
Hall IC/magnet configuration packaged in a molded module that
provides a user-friendly solution for digital gear tooth sensing
applications. The sensor module consists of an over-molded
package, which holds together a samarium cobalt magnet, a pole
piece and a true zero-speed Hall IC that has been optimized to the
magnetic circuit. This small package can be easily assembled and
used in conjunction with gears of various shapes and sizes.
OPERATING CHARACTERISTICS
Valid at TA = -40oC to 150oC over air gap, unless otherwise noted
Typical operating parameters: Vcc = 12 V and TA = 25°C
Maximum Allowable Power Dissipation Calculation for ATS665:
Assume:
Ta = Tamax = 165 °C
Tj(max) = 165°C
4 Icc = 12.0 mA
