4.5V to 24V Operation SS41双极锁存霍尔传感器 SEC品牌 一级代理
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
share to：
- Production
- Technology
- Configuration
- Download
Production：
Features and Benefits
– 4.5V to 24V Operation
– -40℃ to 150℃ Superior temperature operation
– Bipolar technology
– Open-collector 25 mA output
– Reverse battery protection
– Small Size-SOT23 3L and SIP 3L
– Solid-state reliability
– Resistant to physical stress
– Activate with small, commercially available
Permanent magnets

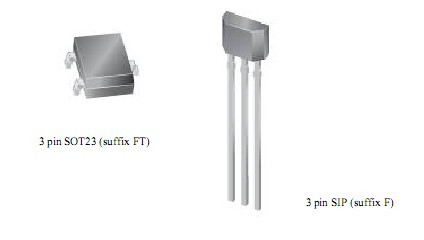

SS41封装图：
邮箱： sumzi002@sumzi.com sumzi006@sumzi.com tech@sumzi.com
销售直线：18938044669 0755- 83298733,

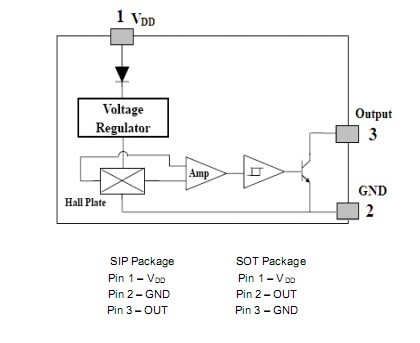

Functional Block Diagram
