双极锁存霍尔开关S732/S632
Description：
print
tel：0755-83031813
email：sumzi@sumzi.com
- Production
- Technology
- Configuration
- Download
Production：
Features and Benefits Application Examples
– Automotive, Consumer and Industrial
– Solid-state switch
– Brushless DC motor commutation
– Speed detection
– Linear position detection
– Angular position detection
– Proximity detection
– Wide operating voltage range from 2.5V to 24V
– High magnetic sensitivity – Multi-purpose
– CMOS technology
– Chopper-stabilized amplifier stage
Superior temperature stability
Extremely low switchpoint dr
Insensitive to physical stress
– Low current consumption
– Output driver with internal pull-up resistor

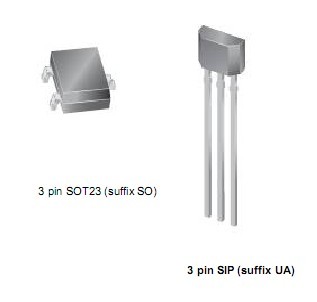

– Tiny SOT23 3L and flat SIP 3L
both RoHS Compliant packages
