Production£º

ACS712 Fully Integrated, Hall Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Features

• Low-noise analog signal path
• Device bandwidth is set via the new FILTER pin
• 5 µs output rise time in response to step input current
• 80 kHz bandwidth
• Total output error 1.5% at T_A = 25¡ãC
• Small footprint, low-profile SOIC8 package
• 1.2 m¦¸ internal conductor resistance
• 2.1 kV_RMS minimum isolation voltage from pins 1-4 to pins 5-8
• 5.0 V, single supply operation
• 66 to 185 mV/A output sensitivity
• Output voltage proportional to AC or DC currents
• Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage

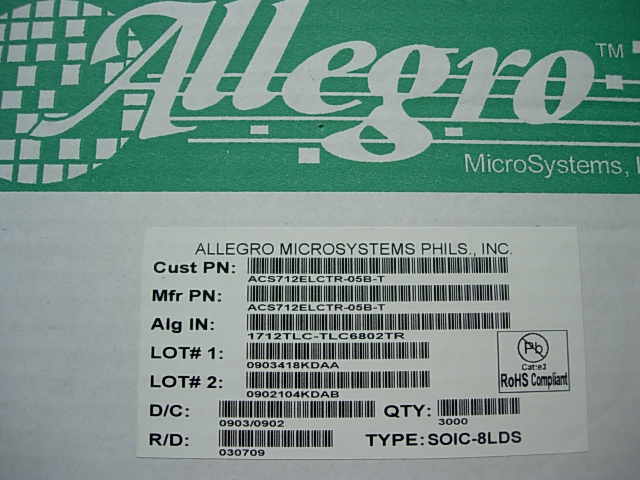

 SUMZI can provide:

ACS712ELC-30A

ACS712ELC-20A

ACS712ELC-05B

Contact person:

Willing Ms.

Phone:  +86-1893 8044 669
Fax:      +86-755- 2264 5259

Email/MSN: sales001@sumzi.com
SKYPE:willingty
