Description:

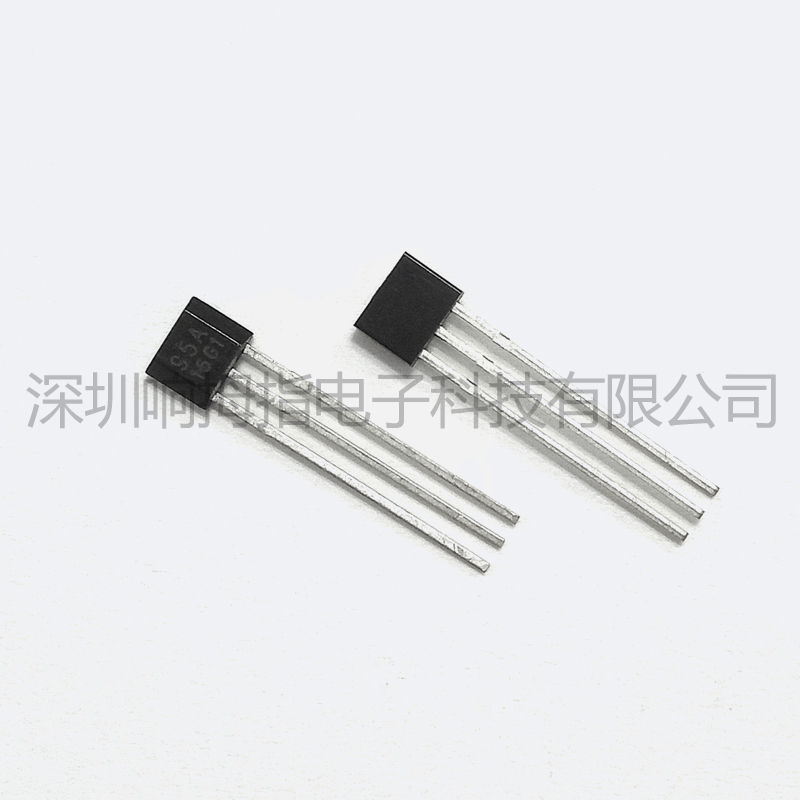

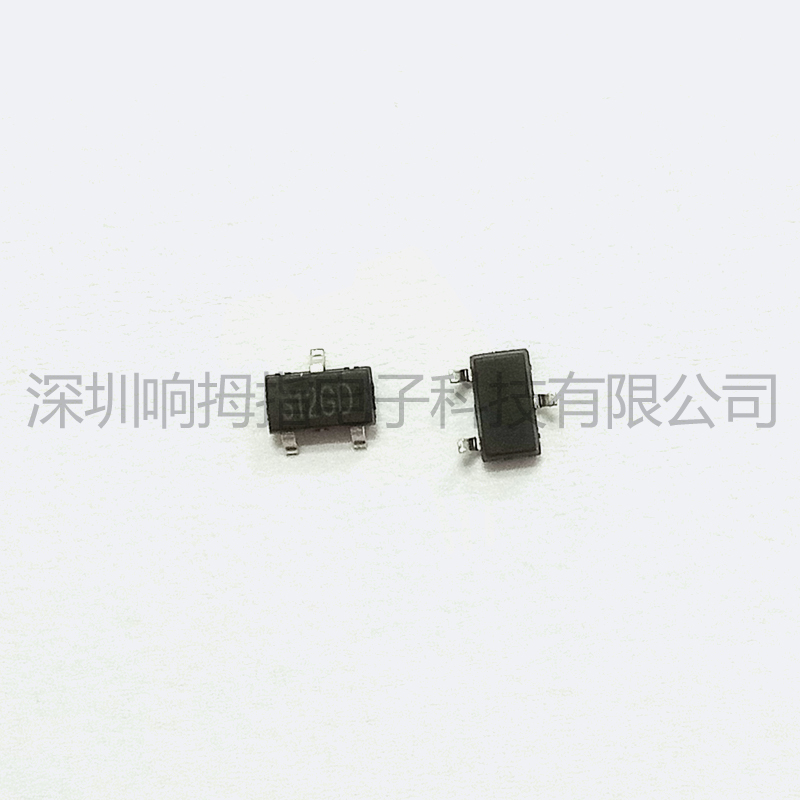

SS4833 Linear Hall-effect sensor is a small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. The linear sourcing output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The integrated circuitry features low noise output, which makes it unnecessary to use external filtering. It also includes thin film resistors to provide increased temperature stability and accuracy. The linear Hall sensor has an operating temperature range of -40 ¡ãC to 150 ¡ãC appropriate for commercial, consumer and industrial environments.

Features and Benefits:

Miniature construction

Low-Noise Outpu

Good Consistency

High sensitivity

High reliability

4.5 V to 10.5 V Operation Voltages

Magnetically Optimized Package

Linear output for circuit design flexibility

Temperature range from -40 ¡ãC to 150 ¡ãC

Application Examples:

Electric vehicles speed regulation pedal

Motion detector

Gear sensing

Motor control

Magnetic code reading

Ferrous metal detector

Current sensing

Position sensing

Proximity detector

Technical data sheets

 SS4833 Linear Hall ICs Data Sheet
