Description:

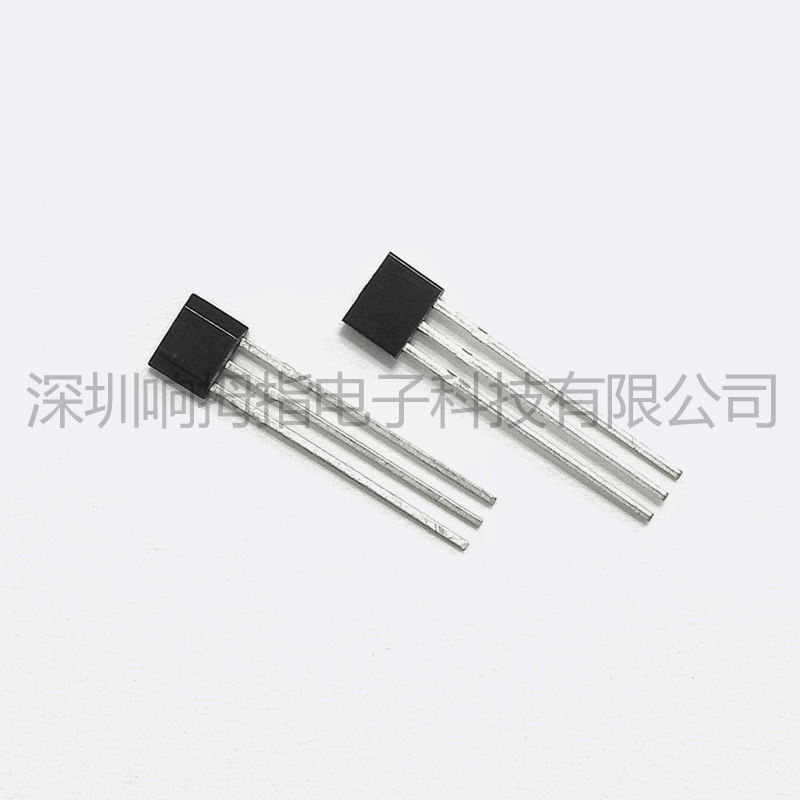

The SS2309 is an Hall effect latched sensor IC fabricated from mixed signal CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

Features and Benefits:

Wide operating voltage range from 3.5V to 24V

High magnetic sensitivity

CMOS technology

Low current consumption

Chopper-stabilized amplifier stage

Open drain output

Superior temperature stability

Insensitive to physical stress

Tiny SOT23 3L and flat SIP 3L both RoHS Compliant packages

Application Examples:

Automotive, Consumer and Industrial

Solid-state switch

Brushless DC motor commutation

Speed detection

Angular position detection

Linear position detection

Proximity detection

Technical data sheets

 SS2309 Hal Effect Bipolar Latches Data Sheet
