Description:

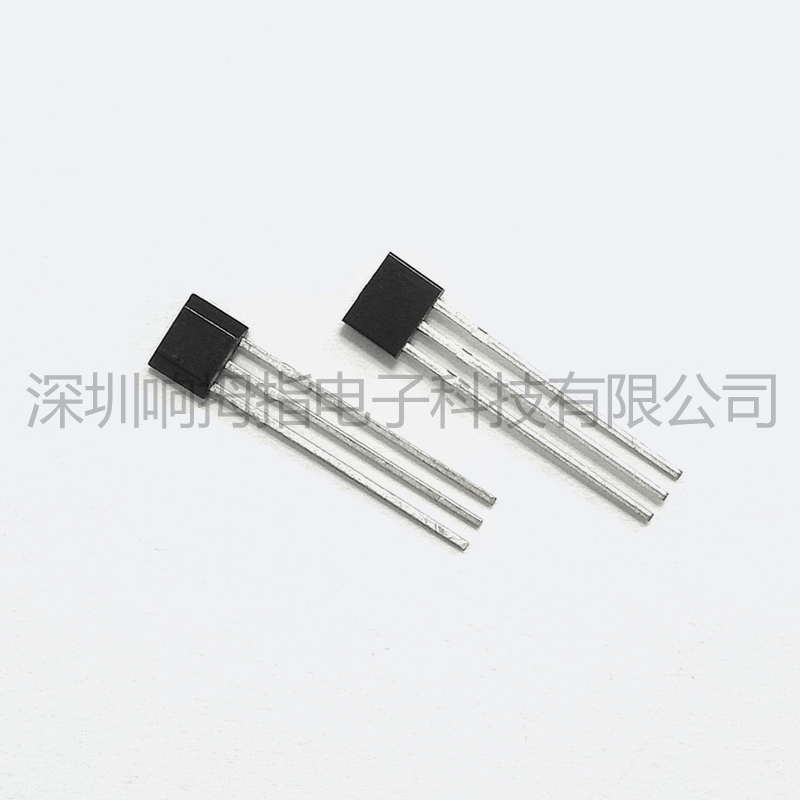

The SS569 is an integrated Hall effect latched sensor IC fabricated from mixed signal CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an output driver with internal pull-up resistor, all in a single package.

Features and Benefits:

Wide operating voltage range from 3.5V to 24V

High magnetic sensitivity ¨C Multi-purpose

CMOS technology

Low current consumption

Chopper-stabilized amplifier stage

Output driver with internal pull-up resistor

Superior temperature stability

Insensitive to physical stress

Small SOT23 3L and flat SIP 3L both RoHS Compliant packages

Application Examples:

Automotive, Consumer and Industrial

Solid-state switch

Brushless DC motor commutation

Speed detection

Angular position detection

Linear position detection

Proximity detection

Technical data sheets

 SS569 Hal Effect Bipolar Latches Data Sheet
