DATASHEET PDF SS40.pdf

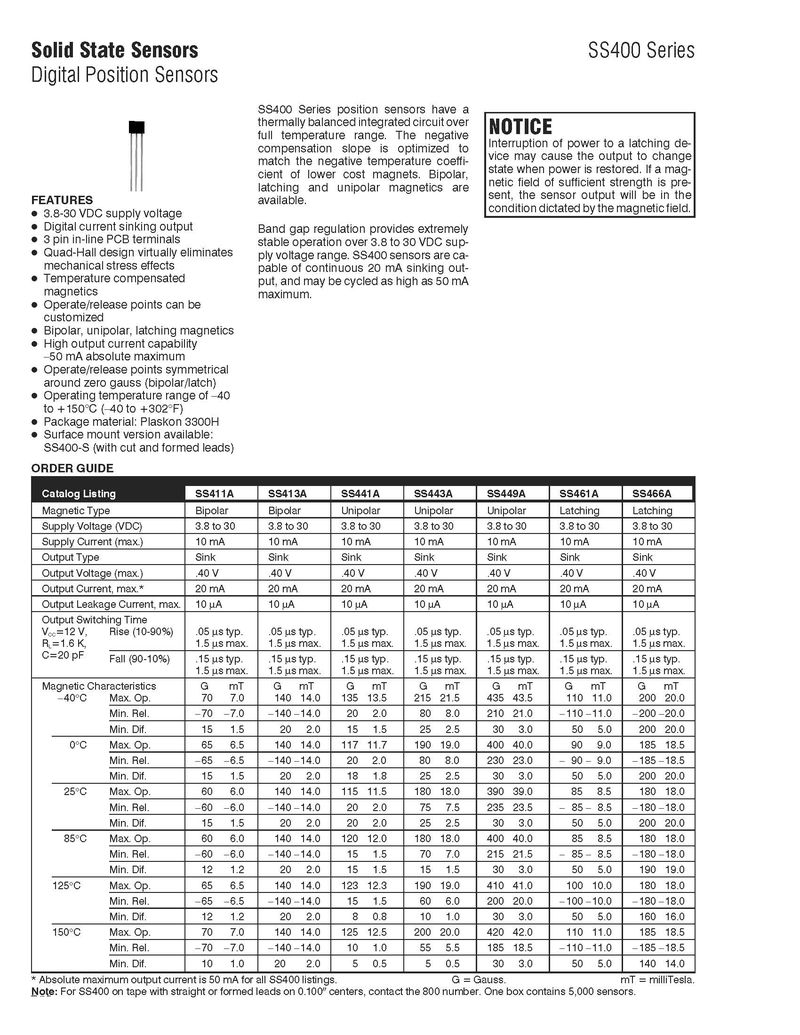

FEATURES
. 3.8-30 VDC supply voltage
. Digital current sinking output
. 3 pin in-line PCB terminals
. Quad-Hall design virtually eliminates mechanical stress effects
. Temperature compensated magnetics
. Operate/release points can be customized
. Bipolar, unipolar, latching magnetics
. High output current capability ¨C50 mA absolute maximum
. Operate/release points symmetrical around zero gauss (bipolar/latch)
. Operating temperature range of ¨C40 to +150¡ãC (¨C40 to +302¡ãF)
. Package material: Plaskon 3300H
. Surface mount version available: SS400-S (with cut and formed leads)

ORDER GUIDE
thermally balanced integrated circuit over full temperature range. The negative compensation slope is optimized to match the negative temperature coeffi-cient of lower cost magnets. Bipolar, latching and unipolar magnetics are available.
Band gap regulation provides extremely stable operation over 3.8 to 30 VDC sup-ply voltage range. SS400 sensors are ca-pable of continuous 20 mA sinking out-put, and may be cycled as high as 50 mA maximum.

NOTICE
Interruption of power to a latching de-vice may cause the output to change state when power is restored. If a mag-netic field of sufficient strength is pre-sent, the sensor output will be in the condition dictated by the magnetic field.
