The SLA7024M, SLA7026M, and SMA7029M are designed for
high-efficiency and high-performance operation of 2-phase, unipolar
stepper motors.  An automated, innovative packaging technology
combined with power FETs and monolithic logic/control circuitry ad-
vances power multi-chip modules (PMCMs?) toward the complete
integration of motion control.  Highly automated manufacturing tech-
niques provide low-cost and exceptionally reliable PMCMs suitable for
controlling and directly driving a broad range of 2-phase, unipolar
stepper motors.  The three stepper motor multi-chip modules differ
primarily in output current ratings (1.5 A or 3.0 A) and package style.

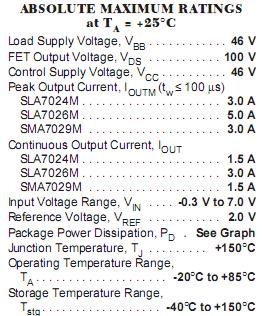

All three PMCMs are rated for an absolute maximum limit of 46 V
and utilize advanced NMOS FETs for the high-current, high-voltage
driver outputs.  The avalanche-rated ( 100 V) FETs provide excellent
ON resistance, improved body diodes, and very-fast switching.  The
multi-chip ratings and performance afford significant benefits and
advantages for stepper drives when compared to the higher dissipation
and slower switching speeds associated with bipolar transistors.
Normally, heat sinks are not required for the SLA7024M or SMA7029M.
The SLA7026M, in demanding, higher-current systems designs,
necessitates suitable heat transfer methods for reliable operation.

Complete applications information is given on the following pages.
PWM current is regulated by appropriately choosing current-sensing
resistors, a voltage reference, a voltage divider, and RC timing net-
works.  The RC components limit the OFF interval and control current
decay.  Inputs are compatible with 5 V logic and microprocessors.
