ALLEGRO New product: A3340 Chopper-Stabilized, Precision Hall-Effect Switch

Features

• Resistant to physical stress
• Superior temperature stability
• Output short-circuit protection
• Operation from unregulated supply
• Reverse battery protection
• Solid-state reliability
• Small size

Description

The A3340 Hall effect switch is an extremely temperature-stable and stress-resistant sensor especially suited for operation over extended temperature ranges up to 150¡ãC. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress.

The device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-collector output to sink up to 25 mA. A south pole of sufficient strength will turn the output off. An on-board regulator permits operation with supply voltages of 4.2 to 24 volts.

Two package styles provide a magnetically optimized package for most applications. Suffix LH is an SOT23W surface mount package and while suffix UA is a three-lead ultramini SIP for through hole mounting.

The A3340 complements the A3240, which offers the same features, but with the opposite output polarity.

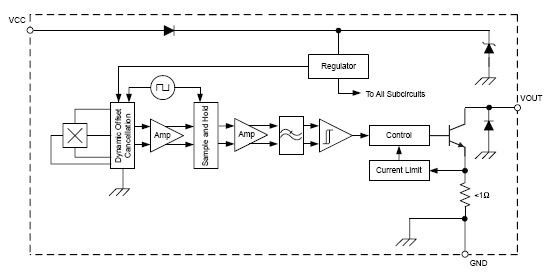

Functional Block Diagram
