Added to our product lineup are 18 types of the "IGBT module NX series" mounted with CSTBT™ with the mounting dimensions having been concentrated into 1 type from the conventional 5 types as a 600V/1200V high voltage power semiconductor module to be used for driving the inverter of general industrial devices. | |
|
|
|
It is possible to reduce the initial cost when developing a custom product. 35/50/75A-1200V CIB, which could not be met by conventional design, was realized. |
|
|
|
The 600V high voltage series was made to have an LPT (Light Punch Through) structure, which the 1200V high voltage series has, instead of the conventional PT (Punch Through) structure. | |
|
|
|
Voltage between collector & emitter: 600/1200V |
|
|
|
Rated current
600V high voltage: 75, 100, 150, 200, 300, 400, 600A
1200V high voltage: 35, 50, 75, 100, 150, 200, 300, 400, 450, 600A |
|
|
|
Saturation voltage between collector & emitter
1.7V (600V, 125oC, standard value)
2.2V (1200V, 125oC, standard value) |
|
|
|
Dielectric voltage: 2500V (AC 60Hz, 1 minute) |
|
|
|
Mounting surface (copper base plate) dimensions: 122 x 62
(projection area including screws and pins differs from one model to another) | |
|
|
|
Motor control units such as the inverter for general use, servo amplifier, etc. | |
| |
|
|
Mounting 6th generation chips |
|
|
|
1700V product lineup |
|
|
|
Larger current capacity due to the package becoming larger | |
| |
|

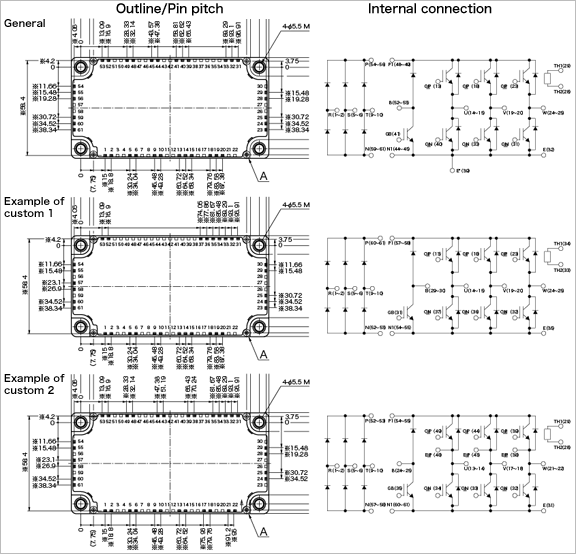

Examples of customs of CIB |
|
