当前位置：Switch with digital LED flashlight drive PCBA
发布时间：2010-10-16 浏览：11199次
|

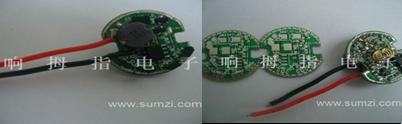

Switch with digital LED flashlight drive PCBA | |||||
| Our company is a leading distributor of Hall sensor ICs and we provide professional Hall sensor products solutions to our worldwide clients. Our latest products are LED flashlight solutions and PCBA (with HALL sensor ICs application). And we can also provide customized products, in line with your requirements. | |||||
| Model: XMZ - 1 | |||||
|
 | ||||
| Product details | |||||
| NO. | Features | Description | Note | ||
| 1 | Emitter brand/type: | Cree R2/Q5/R5/P7 | 1W-11.8W | ||
| 2 | Maximum brightness: | 240-700 LM | Customized products can be produced | ||
| 3 | Voltage Input of the MCU application circuits | 3.3V-15V | |||
| 4 | Inductance step-down constant-current LED driver | 350mA-2800mA, with LED protection | |||
| 5 | Circuit conversion efficiency |
90% | |||
| 6 | Low battery indication | LED blinking automatically when battery voltage below 3.0 V - 3.3 V | |||
| 7 | Programming control transient current output | To prevent LED blinking and instant breakover when power up or switch on | |||
| 8 | PCBA Diameter | 22.0mm | |||
| 9 | PCBA Thickness | 1.0mm | |||
| 10 | Switch | Using the latest magnetic control switch (hall-effect sensor), with more friendly and efficient founctional shift. | |||
| 11 | Five modes selection |
With MCU and hall sensors, each mode can be selected in a 180 degree instant truning reaction | |||
| 12 | Standby mode | Standby mode can only be used for emergency shut-off or on the state of standby. In this mode, flashlight consumes few power to maintaining the operation of micro processor and magnetic sensors. If not use the flashlight for a long time, please turn off the flashlight by pressing the tail swich. | |||
| 13 | SOS mode | Fast Strobe | |||
| 14 | Lo mode | Low-brightness mode | |||
| 15 | Mid mode | Mid-brightness mode | |||
| 16 | Hi mode | High-brightness mode | |||
|
Battery configration & Runtime | |||||
| NO. | Battery configration | Runtime | Cusomized products can be produced | ||
|
Hi-brightness mode (240 LM) | |||||
| 1 | 3 × AAA batteries | 2.5 hrs | |||
| 2 | 1 × 16340 (650mAH) battery | 1 hr | |||
| 3 | 1 × 18650 (3000mAhH) battery | 3 hrs | |||
|
Mid-brightness mode (100 LM) | |||||
| 1 | 3 × AAA batteries | 6 hrs | |||
| 2 | 1 × 16340 (650mAH) battery | 3 hrs | |||
| 3 | 1 × 18650 (3000mAhH) battery | 8 hrs | |||
|
Lo-brightness mode (30 LM) | |||||
| 1 | 3 × AAA batteries | 15 hrs | |||
| 2 | 1 × 16340 (650mAH) battery | 10 hrs | |||
| 3 | 1 × 18650 (3000mAhH) battery | 25 hrs | |||
|
SOS mode (100 LM) | |||||
| 1 | 3 × AAA batteries | 6 hrs | |||
| 2 | 1 × 16340 (650mAH) battery | 3 hrs | |||
| 3 | 1 × 18650 (3000mAhH) battery | 8 hrs | |||
|
Standby mode | |||||
| 1 | 3 × AAA batteries | 300 hrs | |||
| 2 | 1 × 16340 (650mAH) battery | 300 hrs | |||
| 3 | 1 × 18650 (3000mAhH) battery | 1000 hrs | |||
