【产品名称】MCHC908QT4CDWE
【产品类别】FLASH 存储器
【产品应用】
【产品封装】SOP-8
【生产厂家】Freescale飞思卡尔
【产品批号】 07+ROHS
【产品包装】 1632PCS/reel
【产品价格】 欢迎来电洽谈！
【技术参数】
(点击可下载PDF技术资料)
【产品说明】
振荡频率(内部OSC,外部RC,时钟,晶振)可微调3.2MHz,可选择LVI,自动唤醒
1.1 Introduction
The MC68HC908QY4 is a member of the low-cost, high-performance M68HC08 Family of 8-bit
microcontroller units (MCUs). The M68HC08 Family is a Complex Instruction Set Computer (CISC) with
a Von Neumann architecture. All MCUs in the family use the enhanced M68HC08 central processor unit
(CPU08) and are available with a variety of modules, memory sizes and types, and package types.
The MC68HC908QY4 is a member of the low-cost, high-performance M68HC08 Family of 8-bit
microcontroller units (MCUs). The M68HC08 Family is a Complex Instruction Set Computer (CISC) with
a Von Neumann architecture. All MCUs in the family use the enhanced M68HC08 central processor unit
(CPU08) and are available with a variety of modules, memory sizes and types, and package types.
1.2 Features
Features include:
• High-performance M68HC08 CPU core
• Fully upward-compatible object code with M68HC05 Family
• 5-V and 3-V operating voltages (VDD)
• 8-MHz internal bus operation at 5 V, 4-MHz at 3 V
• Trimmable internal oscillator
– 3.2 MHz internal bus operation
– 8-bit trim capability allows 0.4% accuracy(1)
– ± 25% untrimmed
• Auto wakeup from STOP capability
• Configuration (CONFIG) register for MCU configuration options, including:
– Low-voltage inhibit (LVI) trip point
• In-system FLASH programming
• FLASH security(2)
Features include:
• High-performance M68HC08 CPU core
• Fully upward-compatible object code with M68HC05 Family
• 5-V and 3-V operating voltages (VDD)
• 8-MHz internal bus operation at 5 V, 4-MHz at 3 V
• Trimmable internal oscillator
– 3.2 MHz internal bus operation
– 8-bit trim capability allows 0.4% accuracy(1)
– ± 25% untrimmed
• Auto wakeup from STOP capability
• Configuration (CONFIG) register for MCU configuration options, including:
– Low-voltage inhibit (LVI) trip point
• In-system FLASH programming
• FLASH security(2)

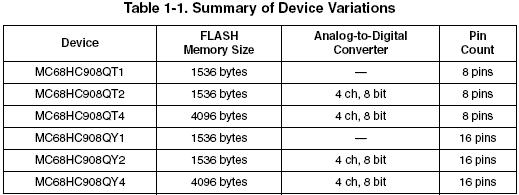

• MC68HC908QY4, MC68HC908QY2, and MC68HC908QY1 are available in these packages:
– 16-pin plastic dual in-line package (PDIP)
– 16-pin small outline integrated circuit (SOIC) package
– 16-pin thin shrink small outline package (TSSOP)
• MC68HC908QT4, MC68HC908QT2, and MC68HC908QT1 are available in these packages:
– 8-pin PDIP
– 8-pin SOIC
– 8-pin dual flat no lead (DFN) package
– 16-pin plastic dual in-line package (PDIP)
– 16-pin small outline integrated circuit (SOIC) package
– 16-pin thin shrink small outline package (TSSOP)
• MC68HC908QT4, MC68HC908QT2, and MC68HC908QT1 are available in these packages:
– 8-pin PDIP
– 8-pin SOIC
– 8-pin dual flat no lead (DFN) package
