当前位置：AS1100PL LED驱动芯片 热卖中 原装现货、提供报价 0755-33062500
发布时间：2009-04-09 浏览：5005次
【产品名称】AS1100PL
【产品类别】LED驱动芯片
【产品应用】应用于电机

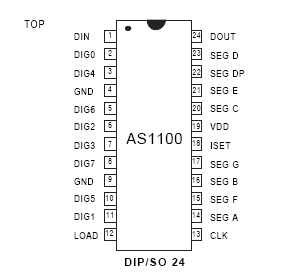

【产品封装】24-PIN DIP
【生产厂家】AMS
【产品批号】06+ROHS
【产品包装】15pcs/tube
【产品价格】欢迎来电洽谈！
Key Features
- 10MHz Serial Interface
- Individual LED Segment Control
- Decode/No-Decode Digit Selection
- 20μA Low-Power Shutdown (Data Retained)
- Extremely low Operating Current 0.5mA in open loop
- Digital and Analog Brightness Control
- Display Blanked on Power-Up
- Drive Common-Cathode LED Display
- Software Reset1
- Optional External clock
- 24-Pin DIP and SO Packages
- Fully compatible to MAX7219
- 10MHz Serial Interface
- Individual LED Segment Control
- Decode/No-Decode Digit Selection
- 20μA Low-Power Shutdown (Data Retained)
- Extremely low Operating Current 0.5mA in open loop
- Digital and Analog Brightness Control
- Display Blanked on Power-Up
- Drive Common-Cathode LED Display
- Software Reset1
- Optional External clock
- 24-Pin DIP and SO Packages
- Fully compatible to MAX7219
Every individual segment can be addressed and updated
separately. Only one external resistor is required to set the
current through the LED display. Brightness can be
controlled either in an analog or digital way. The user can
choose the internal code-B decoder to display numeric
digits or to address each segment directly. The AS1100
features an extremely low shutdown current of only 20μA.
and an operational current of less than 500μA. The number
of visible digits can be programmed as well. The AS1100
can be reset by software and an external clock can be used.
Several test modes support easy debugging.
The AS1100 is fully compatible to the MAX 7219. AS1100 is
offered in a 24 pins PDIP and SOIC package.
separately. Only one external resistor is required to set the
current through the LED display. Brightness can be
controlled either in an analog or digital way. The user can
choose the internal code-B decoder to display numeric
digits or to address each segment directly. The AS1100
features an extremely low shutdown current of only 20μA.
and an operational current of less than 500μA. The number
of visible digits can be programmed as well. The AS1100
can be reset by software and an external clock can be used.
Several test modes support easy debugging.
The AS1100 is fully compatible to the MAX 7219. AS1100 is
offered in a 24 pins PDIP and SOIC package.
