当前位置：MBRS140T3G快恢复二极管 全新原装现货 热卖中！！！
MBRS140T3/MBRS140T3G 型号
MBRS140T3G 应用 快恢复二极管，整流器 正向电流:3.0A 峰值电压:400V 正向压降:0.875V 恢复时间:75ns
MBRS140T3G 批号 06+
MBRS140T3G 数量 大量现货
MBRS140T3G 封装 SMD
MBRS140T3G 包装 2500PCS/盘

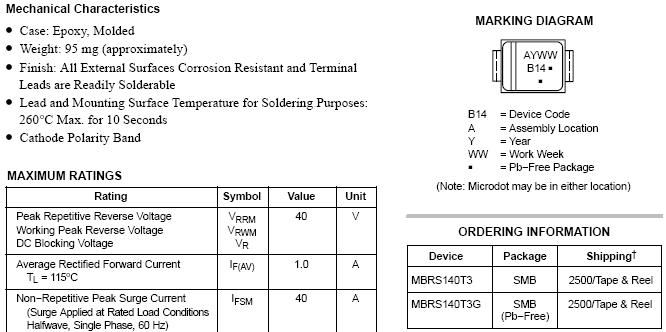

MBRS140T3/MBRS140T3G 技术参数（规格书）.PDF
MBRS140T3G 备注 全新原装正品，拥有大量库存现货
ON 品牌系列产品
Surface Mount
Schottky Power Rectifier
Schottky Power Rectifiers employ the use of the Schottky Barrier
principle in a large area metal−to−silicon power diode.
State−of−the−art geometry features epitaxial construction with oxide
passivation and metal overlay contact. Ideally suited for low voltage,
high frequency rectification, or as free wheeling and polarity
protection diodes in surface mount applications where compact size
and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop
(0.55 V Max @ 1.0 A, TJ = 25°C)
• Excellent Ability to Withstand Reverse Avalanche Energy Transients
• Guardring for Stress Protection
• Pb−Free Package is Available
