CAT809STBI-GT3 详细介绍

CAT809STBI-GT3 型号
CATALYST品牌系列产品 CAT809STBI-GT3
CAT809STBI-GT3 批号 06+ROHS
CAT809STBI-GT3 数量 90000
CAT809STBI-GT3 封装 SOT-23
CAT809STBI-GT3 包装 3000/REEL
CAT809STBI-GT3 备注 in stock/original
CAT809STBI-GT3 PDF技术资料 CAT809.pdf

CAT809STBI-GT3微处理器电源应用：电脑、通信、电缆调制器、控制仪器及大型家电等等

FeatATuresS
Precision monitoring of
+5.0V (-5%, -10%, -20%),
+3.3V (-5%, -10%),
+3.0V (-10%) and
+2.5V (-5%) power supplies

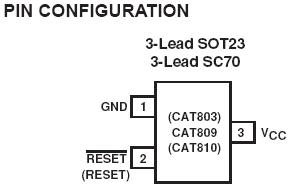

Offered in three output configurations:
- CAT803: Open-Drain Active LOW reset
- CAT809: Push-Pull Active LOW reset
- CAT810: Push-Pull Active HIGH reset
Direct replacements for the MAX803, MAX809 and MAX810 in applications operating over the industrial temperature range
Rreset valid down to VCC = 1.0V
6μA power supply current
Power supply transient immunity
Industrial temperature range: -40ºC to +85ºC
Available in RoHS-compliant SOT-23 and SC70 packages

Applicatios
Computers
Servers
Laptops
Cable modems
Wireless communications
Eembedded control systems
White goods
Power meters
Intelligent instruments
PDAs and handheld equipment
