DUAL FULL-BRIDGE PWM MOTOR DRIVER WITH BRAKE

A3968SLB-T 型号
allegro 品牌系列产品
A3968SLB-T 批号 06+
A3968SLB-T 数量大量现货

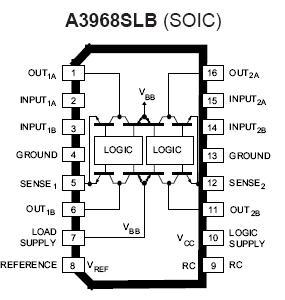

A3968SLB-T 封装 16-lead SOIC

A3968SLB-T 包装

A3968SLB-T 备注原装正品，无铅现货，步进电机驱动IC
A3968SLB-T 技术资料

A3968SLB-T.pdf

A3968SLB-T 相关型号 A3968SLB-T

A3968SLB-T 报价

FEATURES
■ ±650 mA Continuous Output Current
■ 30 V Output Voltage Rating
■ Internal Fixed-Frequency PWM Current Control
■ Satlington Sink Drivers
■ Brake Mode
■ User-Selectable Blanking Window
■ Internal Ground-Clamp & Flyback Diodes
■ Internal Thermal-Shutdown Circuitry
■ Crossover-Current Protection and UVLO Protection

ABSOLUTE MAXIMUM RATINGS
Load Supply Voltage, VBB ................... 30 V
Output Current, IOUT (peak) .......... ±750 mA
(continuous) .............................. ±650 mA
Logic Supply Voltage, VCC ................. 7.0 V
Input Voltage, Vin ..... -0.3 V to VCC + 0.3 V
Sense Voltage, VS ................................ 1.0 V
Package Power Dissipation (TA = 25°C), PD
A3968SA ..................................... 1.8 W*
A3968SLB ................................... 1.4 W*
Operating Temperature Range,
TA ................................... -20°C to +85°C
Junction Temperature,
TJ ................................................. +150°C
Storage Temperature Range,
TS ................................. -55°C to +150°C
